脚本函数帮助文档
1 概述
脚本函数大约有1000多个，当前文档对函数进行简单的说明。
脚本函数用法如下：

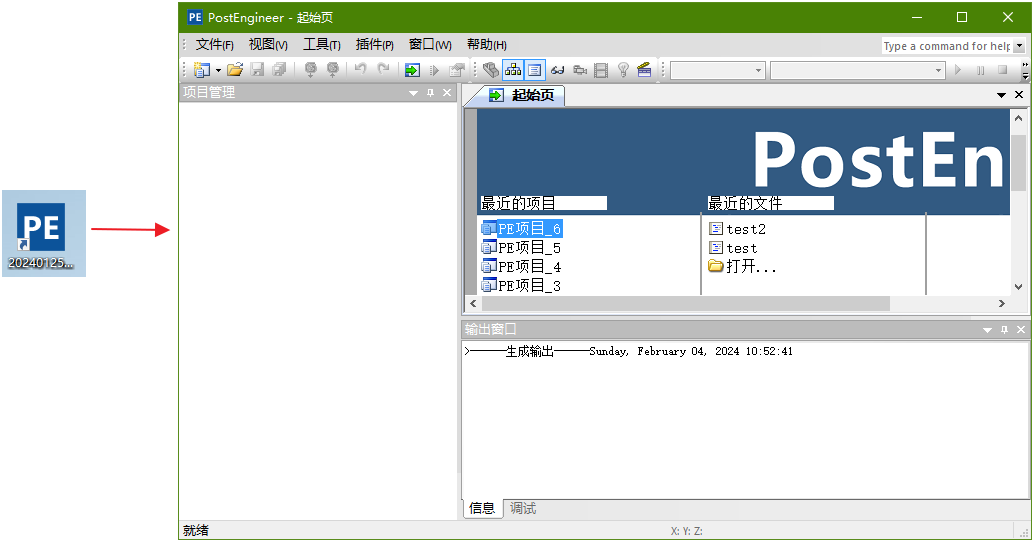

双击PE图标，打开PE平台

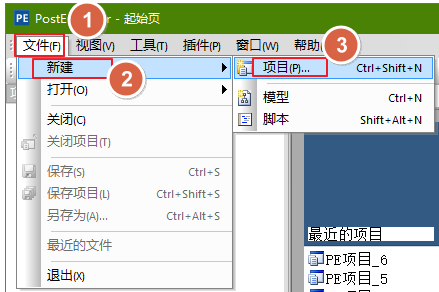

点击PE菜单栏中的文件菜单，接着点击新建→项目

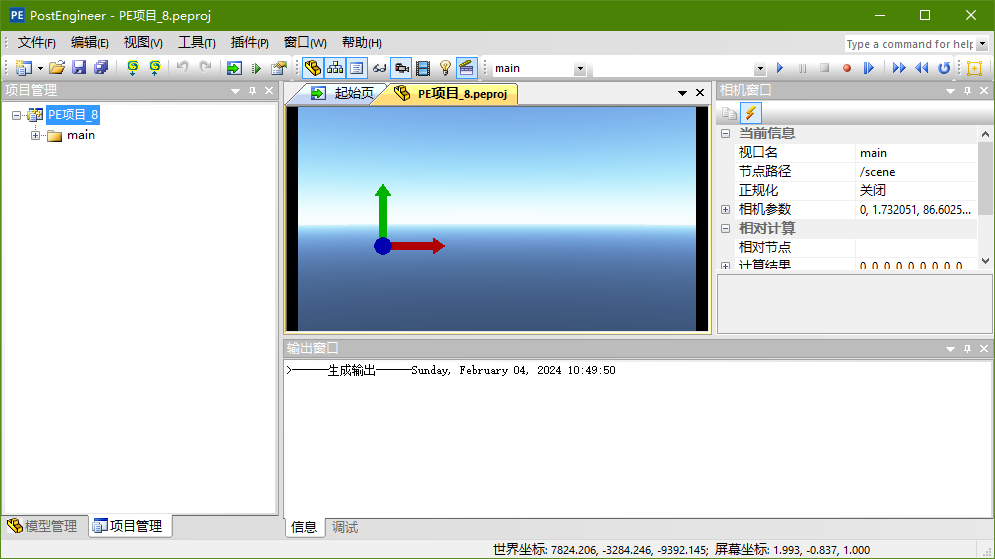

项目创建完成后，会看到如下界面

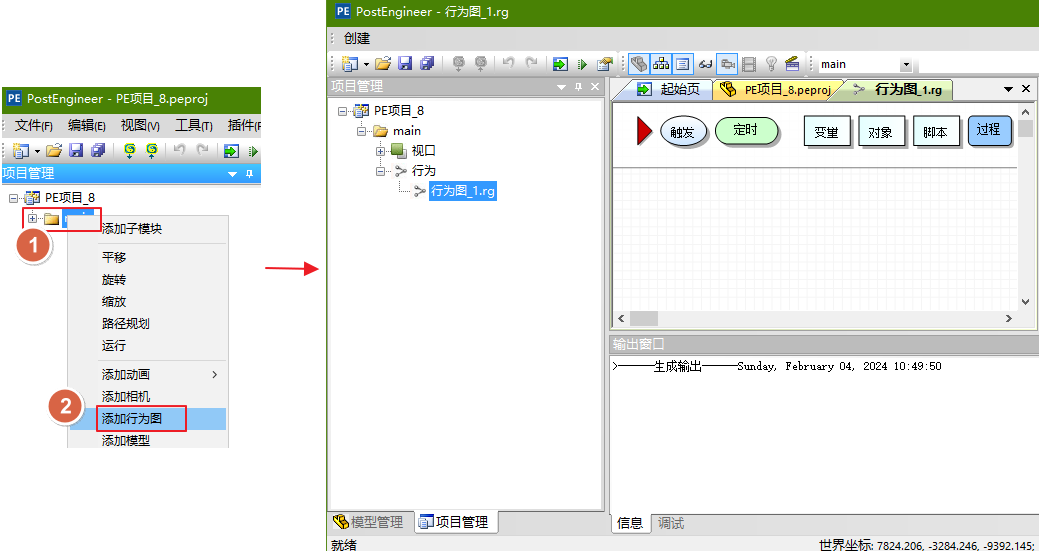

右键选中main,点击添加行为图

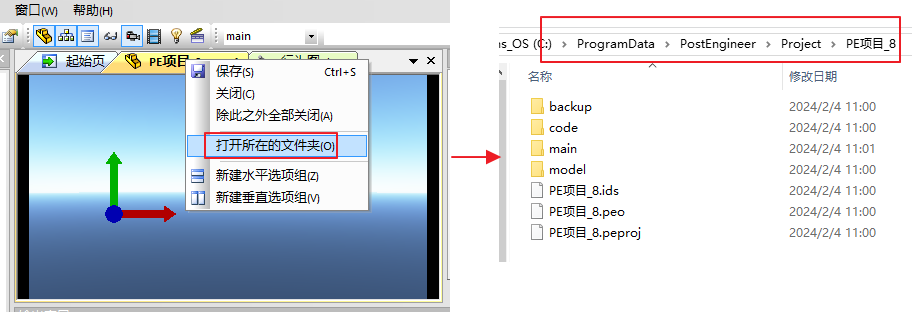

右键选中顶部的tab标签，选择打开所在文件夹

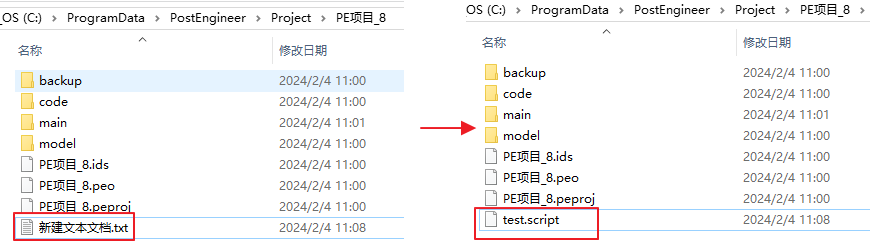

在当前文件夹下，新建一个文本文件，把该文件的后缀名更改为script
使用文本编辑工具，如：notepad++、sublime text、UltraEdit、vscode等，打开文本文件。(如果有时间，我打算开发一个针对脚本语言的文本编辑工具，使用第三方工具，做脚本开发，着实有些难受)
如下图所示，输入相关代码
script关键词，是脚本语言首行必须有的
void test()是我们自定义的一个函数(这和我们大学中的C语言很像，定义一个返回为空，参数为空，函数名为test的函数)。
在test函数中，messageBox是脚本函数，它表示弹出一个提示消息框。

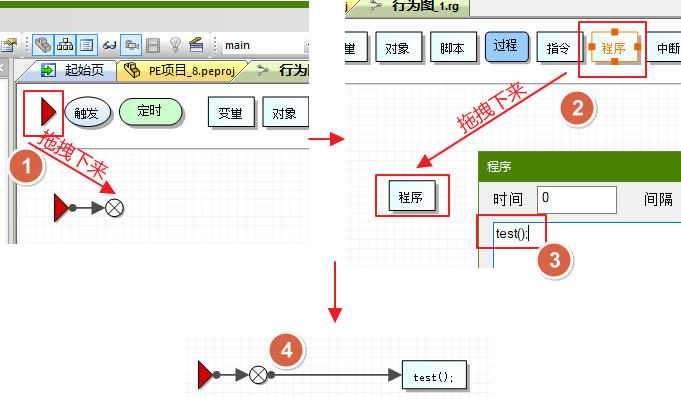

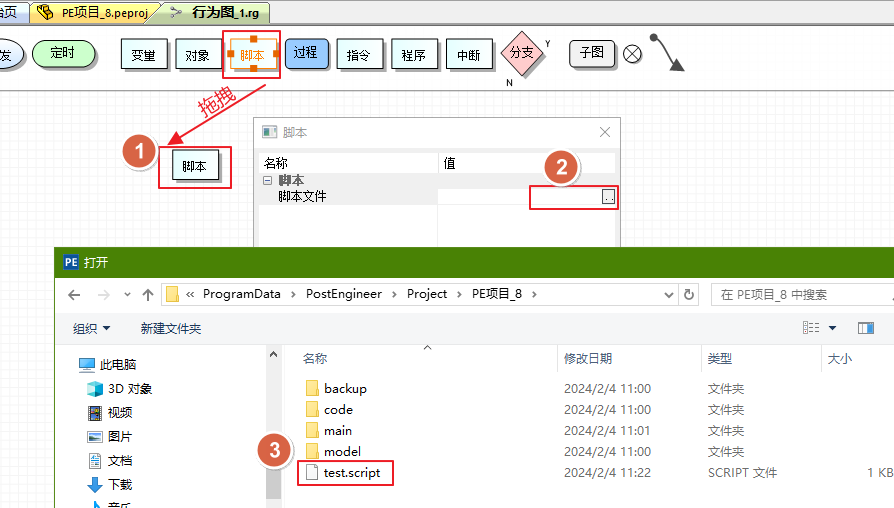

按照下图，拖拽相关控件。

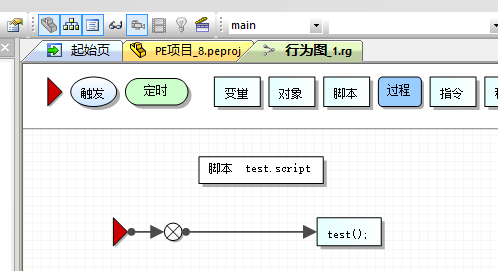

拖拽控件后，可以看到如下图所示情况。

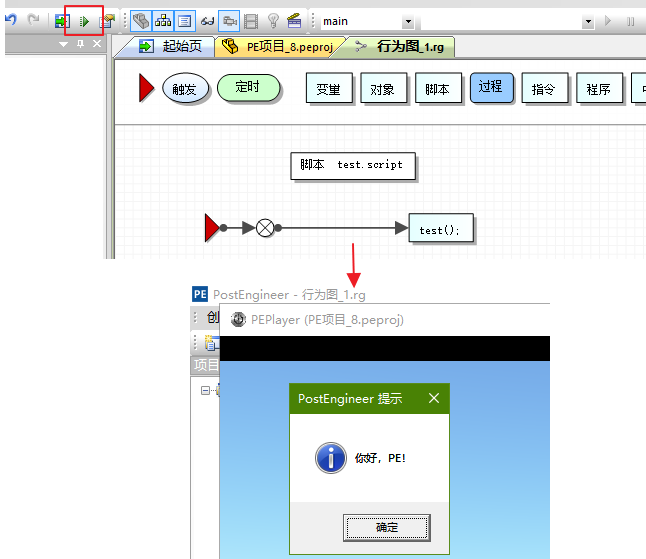

最后点击运行按钮，即可看到消息框。
2 脚本函数
3 函数详情
3.1 系统程序
3.1.1 动画函数
(1) astart播放动画
void astart(string animName);
播放一个动画。
参数：
- animName，字符类型，动画的名称
- 返回类型为空

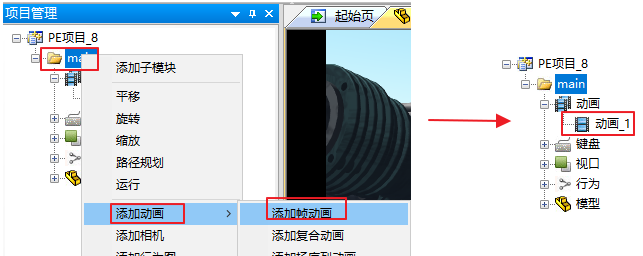

动画的名称，鼠标右键选中main，新建帧动画
上图的“动画_1”就是动画的名称，怎么创建一个动画，可以查阅用户手册
(2) astart播放动画
void astart(string animName, bool bReverse);
逆着播放一个动画。
参数：
- animName，字符类型，动画的名称
- bReverse，布尔类型，是否倒序播放动画
- 返回类型为空
(3) astart播放动画
void astart(string animName, bool bReverse, bool bCopy);
播放一个动画。
参数：
- animName，字符类型，动画的名称；
- bReverse，布尔类型，是否倒序播放动画；
- bCopy，布尔类型，是否拷贝。
- 返回类型为空
注意：这个函数我没有用过，不知道是什么效果。
(4) astartDelay延时播放动画
void astartDelay(string animName, float delaytime);
延时播放一个动画。
参数：
- animName，字符类型，动画的名称；
- bReverse，布尔类型，是否倒序播放动画；
- bCopy，布尔类型，是否拷贝。
- 返回类型为空
(5) areset重置播放动画
void areset(string animName);
重新播放一个动画。
参数：
- animName，字符类型，动画的名称；
- 返回类型为空
(6) astop停止动画
void areset(string animName);
停止播放动画。
参数：
- animName，字符类型，动画的名称；
- 返回类型为空
(7) apause暂停动画
void apause(string animName);
将一个动画暂停。
参数：
- animName，字符类型，动画的名称；
- 返回类型为空
(8) acontinue继续播放动画
void acontinue(string animName);
继续播放一个动画。
参数：
- animName，字符类型，动画的名称；
- 返回类型为空
下面有一个例子，按下键盘四个按钮，分别按下数字键1、2、3、4，执行动画的播放、停止等效果。
3.1.2 获得key函数
(1) getkey 获得key
dword getkey(string pathname);
获得节点key
参数：
- pathname，字符类型，平台的树形上的路径；
- 返回类型为dword。dword是什么类型，我猜，应该是一个32为无符号整型。因为win32的api也有一个DWORD类型，win32的DWORD是无符号整型。如果有小伙伴问，无符号整型是什么，它就是C语言中的unsigned int类型，如果还有小伙伴问unsigned int是什么，那么，你可以需要看一下唐浩强出版的«C语言程序设计»

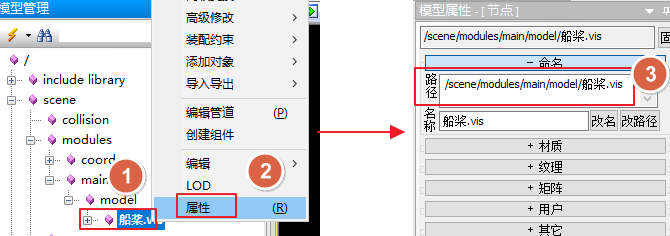

鼠标右键选中平台左边树上的某个节点，点击属性，可以看到该节点的路径，如下图所示
可以是用下面代码，打印出key
dword key = getkey("/scene/modules/main/model/船桨.vis");
string str = "key="+itoa(key);
printString(0.0, 0.0, str);

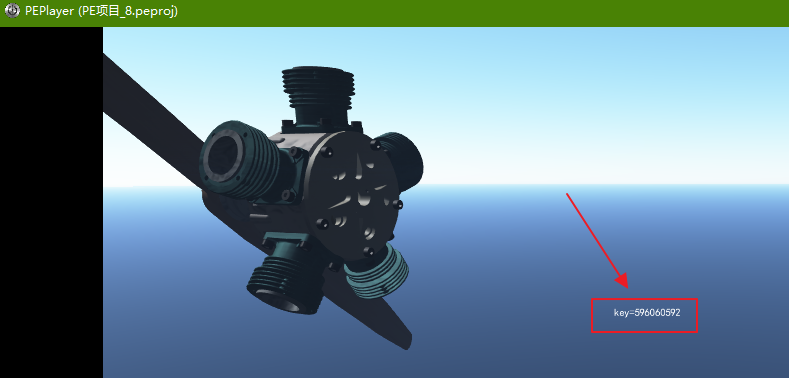

打印结果可能如下图所示。
(2) command 执行命令
void command(string cmdStr);
执行命令
参数：
- cmdStr，字符类型，某个指令；
- return，返回类型为空
注意：这个函数我没有用过，不知道是有什么效果。
(3) getSelectedKey 获取被选中节点的key
dword getSelectedKey();
获取被选中节点的key
参数：
- return，返回类型为空
(3) isChildOf 判断是否是子节点
bool isChildOf(dword key, dword owner_key);
判断两个key的父子关系
参数：
- key, dword类型，子节点key
- owner_key, dword类型，父节点key
- return，返回类型是布尔型
(4) selectByKey 使用key选中节点
void selectByKey(dword key, bool bSel);
通过key选择节点
参数：
- key, dword类型，某个节点的key
- bSel, 布尔类型，是否选中
- return，返回类型为空
(5) getOwnerKey 获得key的父亲key
dword getOwnerKey(dword key);
通过一个key获取父亲key
参数：
- key, dword类型，某个节点的key
- return，返回类型dword类型，父亲key
( ) enableGroup
void enableGroup(string moduleName, int gid, bool bEnable);
( ) setObjectGroup
void setObjectGroup(string name, int gid);
( ) moveObjectByGroup
void moveObjectByGroup(string moduleName, int gid, float dx, float dy, float dz);
( ) setTransparency
void setTransparency(string pathname, float transp);
( ) setTransparencyByKey
void setTransparencyByKey(dword key, float transp);
( ) createField
dword createField(string pathname);
( ) copyField
dword copyField(dword key, dword newOwnerKey);
( ) teamFieldsOnPipe
void teamFieldsOnPipe(string array& coordNames, int coordCount, dword array& keys, int keyCount, int curveType, float arcRadius);
( ) showFieldBox
void showFieldBox(string pathname, bool bShow);
( ) showFieldBoxByKey
void showFieldBoxByKey(dword key, bool bShow);
( ) rebuildFieldBox
void rebuildFieldBox(string pathname);
( ) hilightField
void hilightField(string pathname, bool bShow);
( ) hilightFieldByKey
void hilightFieldByKey(dword key, bool bShow);
( ) setSelectable
void setSelectable(string pathname, bool bSel);
( ) setSelectableByKey
void setSelectableByKey(dword key, bool bSel);
( ) setOptions
void setOptions(string pathname, string content , string strOption);
( ) setFieldOption
void setFieldOption(string pathname, string content);
( ) setFieldOption
void setFieldOption(string pathname, string content);
( ) unloadFieldFromGPU
void unloadFieldFromGPU(string pathname);
( ) insertStencil
void insertStencil(string pathname, float ox, float oy, float w, float h);
( ) unloadAllObjects
void unloadAllObjects();
( ) loadAllObjects
void loadAllObjects();
( ) setShowAlways
void setShowAlways(string pathname, bool b);
( ) restoreStatus
void restoreStatus(string name);
( ) restoreStatusFile
void restoreStatusFile(string filename);
( ) rotateImage
void rotateImage(string name, float angle);
( ) setMaterialRoughness
void setMaterialRoughness(string fieldname, float f);
( ) setMaterialMetalic
void setMaterialMetalic(string fieldname, float f);
( ) setMaterialOcclusion
void setMaterialOcclusion(string fieldname, float f);
( ) setMaterialReflection
void setMaterialReflection(string fieldname, float f);
( ) getMousePosition
void getMousePosition( float& x, float& y );
( ) captureScreen
// void captureScreen(dword& bits, int& width, int& height);
( ) appSendMessage
void appSendMessage(string appName, string msg);
( ) appSendData
void appSendData(string appName, byte array& bytes, int count);
( ) appSetTitle
void appSetTitle(string title);
( ) appBringToTop
void appBringToTop(string appName);
( ) appTakeToBottom
void appTakeToBottom(string appName);
( ) appExit
void appExit(string appName);
( ) appGetModuleHandle
dword appGetModuleHandle();
( ) appSetGlobalVar
dword appSetGlobalVar(string appName, int val);
( ) appSetFullScreen
void appSetFullScreen(bool bFullScreen);
( ) appPrintLog
void appPrintLog(string file, string name, int val);
( ) appPrintLog
void appPrintLog(string name, int val);
( ) appGetDirectory
string appGetDirectory(string name);
( ) intoModule
bool intoModule(string moduleName);
( ) enableModule
void enableModule(string moduleName, bool b);
( ) setModulePosition2D
void setModulePosition2D(string moduleName, float x, float y, float z);
( ) enableObject
void enableObject(string objectName, bool b);
( ) enableButton
void enableButton(string objectName, bool b);
( ) enableMenu
void enableMenu(string objectName, bool b);
( ) setObjectPosition
void setObjectPosition(string objectName, float x, float y, float z);
( ) deleteObject
void deleteObject(string objectName);
( ) getObjectHandle
dword getObjectHandle(string objectName);
( ) deleteObjectByGroup
void deleteObjectByGroup(string moduleName, int gid);
( ) setObjectAnchor
void setObjectAnchor(string objectName, string anchorName);
( ) setObjectAnchorOffset
void setObjectAnchorOffset(string objectName, float dx, float dy);
( ) unloadResources
void unloadResources(string moduleName, bool bAllChildren);
( ) loadResources
void loadResources(string moduleName, bool bAllChildren);
( ) openInterfaceTable
bool openInterfaceTable();
( ) closeInterfaceTable
bool closeInterfaceTable();
( ) modifyInterfaceTable
bool modifyInterfaceTable();
( ) modifyInterfaceVariable
bool modifyInterfaceVariable(string varName);
( ) refreshInterfaceTable
bool refreshInterfaceTable();
( ) buildVariableMapping
bool buildVariableMapping(string x_name, string y_name, string func_name);
( ) buildModuleVariableReference
void buildModuleVariableReference(string name);
( ) getFullFieldPath
string getFullFieldPath(string localPath);
( ) setVideoSource
bool setVideoSource(string name, string source);
( ) stopVideo
bool stopVideo(string name);
( ) startVideo
bool startVideo(string name);
( ) pauseVideo
bool pauseVideo(string name);
( ) continueVideo
bool continueVideo(string name);
( ) setVideoPosition
bool setVideoPosition(string name, float x, float y, float z);
( ) setVideoSize
bool setVideoSize(string name, float w, float h);
( ) flush
void flush( string pathname );
( ) flush
void flush( dword key );
( ) flushFaces
void flushFaces( dword key );
( ) flushFaces
void flushFaces( string pathname );
( ) lines3d
void lines3d( string pathname, float array& points, int count, float width, int linetype, float lineFactor, float r, float g, float b );
( ) line3d
void line3d(string pathname, float array& pt1, float array& pt2, float width, int linetype, float lineFactor, float r, float g, float b);
( ) lines2d
void lines2d( string pathname, float array& points, int count, float depth, float width, int linetype, float lineFactor, float r, float g, float b );
( ) setLinesPos2d
void setLinesPos2d( string pathname, float array& points, int count, float depth);
( ) setLinesPos2dByKey
void setLinesPos2dByKey( dword key, float array& points, int count, float depth);
( ) drawPipe
void drawPipe( string pathname, float array& points, int count, float radius, int curveType, float arcRadius );
( ) drawPipeByAxis
void drawPipeByAxis( string pathname, float array& points, int count, float radius);
( ) drawSphere
void drawSphere( string pathname, float x, float y, float z, float radius);
( ) drawSphereBLH
void drawSphereBLH(string pathname, float B, float L, float h, float radius);
( ) drawSphere
void drawSphere( string pathname, float x, float y, float z, float radius, float r, float g, float b, float a);
( ) drawSphereLines
void drawSphereLines(string pathname, float x, float y, float z, float radius, float stepAngle);
( ) drawRect
void drawRect( string pathname, float x, float y, float z, float nx, float ny, float nz, float width, float height);
( ) drawPolygon
void drawPolygon( string pathname, float array& points, int count);
( ) drawPolygonExtend
void drawPolygonExtend( string pathname, float array& points, int count, float height);
( ) drawCircle2d
void drawCircle2d( string pathname, float x, float y, float depth, float radius, float width, int linetype, float lineFactor, float r, float g, float b );
( ) drawCircle
void drawCircle(string pathname, float x, float y, float z, float nx, float ny, float nz, float radius, float width, int linetype, float lineFactor, float r, float g, float b);
( ) drawCuboid
void drawCuboid(string pathname, float x, float y, float z, float w, float h, float l, int layers, float array& colors);
( ) setCuboidColors
void setCuboidColors(string pathname, int layers, float array& colors);
( ) drawCameraRange
void drawCameraRange(string pathname, string name, float x, float y, float z, float vx, float vy, float vz, float angle, float length, float r, float g, float b, float a);
( ) drawRadarRange
void drawRadarRange(string pathname, string name, float x, float y, float z, float vx, float vy, float vz, float angle, float length, float r, float g, float b, float a, float ratio);
( ) drawConeRange
void drawConeRange(string pathname, string name, float x, float y, float z, float vx, float vy, float vz, float angle, float length, float r, float g, float b, float a);
( ) drawCubeRange
void drawCubeRange(string pathname, string name, float x, float y, float z, float l, float w, float h, float r, float g, float b, float a);
( ) setLineColor
void setLineColor(string pathname, float r, float g, float b, float a);
( ) drawLightLine
void drawLightLine(string pathname, string name, float x, float y, float z, float x2, float y2, float z2, float width);
( ) drawCommunication
void drawCommunication(string pathname, string name, float array& points, int count, float width, float speed, float exposure, string imageFile);
( ) drawCommunication
void drawCommunication(string pathname, string name, float x1, float y1, float z1, float x2, float y2, float z2, float width, float speed, float exposure, string imageFile);
( ) drawFlow
void drawFlow(string pathname, string name, float array& points, int count, float width, float speed, float exposure, string imageFile);
( ) drawFlowCurve
void drawFlowCurve(string pathname, string name, float array& points, int count, float width, float speed, float exposure, string imageFile);
( ) drawFlow
void drawFlow(string pathname, string name, float x1, float y1, float z1, float x2, float y2, float z2, float width, float speed, float exposure, string imageFile);
( ) setFlowSegment
void setFlowSegment(string pathname, string name, float u1, float u2);
( ) setPosition
void setPosition(string pathname, float x, float y, float z);
( ) setPositionByKey
void setPositionByKey(dword key, float x, float y, float z);
( ) moveField
void moveField(string pathname, float axisx, float axisy, float axisz, float dis);
( ) moveField
void moveField(string pathname, float dx, float dy, float dz);
( ) moveFieldByKey
void moveFieldByKey(dword key, float axisx, float axisy, float axisz, float dis);
( ) moveFieldByKey
void moveFieldByKey(dword key, float dx, float dy, float dz);
( ) moveFieldOnRoute
void moveFieldOnRoute(string pathname, string routeName, float totalTime, float startTime);
( ) moveFieldOnRouteWithSpeed
void moveFieldOnRouteWithSpeed(string pathname, string routeName, float speed, float time, bool reversed);
( ) scaleField
void scaleField(string pathname, float sx, float sy, float sz);
( ) scaleField
void scaleField(string pathname, float ox, float oy, float oz, float sx, float sy, float sz);
( ) scaleFieldByKey
void scaleFieldByKey(dword key, float ox, float oy, float oz, float sx, float sy, float sz);
( ) deleteField
void deleteField(string pathname);
( ) isFieldVisible
bool isFieldVisible(string pathname);
( ) setFieldMatrix
void setFieldMatrix(string pathname, float array matrix);
( ) setFieldMatrixByKey
void setFieldMatrixByKey(dword key, float array matrix);
( ) showFieldMatrix
void showFieldMatrix(string pathname, float array& matrix);
( ) showFieldMatrixByKey
void showFieldMatrixByKey(dword key, float array& matrix);
( ) resetFieldMatrix
void resetFieldMatrix(string pathname);
( ) resetFieldRotation
void resetFieldRotation(string pathname);
( ) resetFieldMatrixByKey
void resetFieldMatrixByKey(dword key);
( ) backupFieldMatrix
void backupFieldMatrix(string pathname);
( ) restoreFieldMatrix
void restoreFieldMatrix(string pathname);
( ) transformBody
bool transformBody(string bodyName);
( ) transformBody
bool transformBody(string bodyName, float x, float y, float z, float head, float pitch, float roll);
( ) transformBody
bool transformBody(string bodyName, float x, float y, float z, float forwardx, float forwardy, float forwardz, float leftx, float lefty, float leftz);
( ) transformFieldTo
void transformFieldTo(string fieldPath1, float array pt1, float array dir1, string fieldPath2, float array pt2, float array dir2);
( ) rotateField
void rotateField(string pathname, float x, float y, float z, float axisx, float axisy, float axisz, float angle);
( ) rotateFieldByKey
void rotateFieldByKey(dword key, float x, float y, float z, float axisx, float axisy, float axisz, float angle);
( ) rotateFieldWorld
void rotateFieldWorld(string pathname, float x, float y, float z, float axisx, float axisy, float axisz, float angle);
( ) rotateFieldAnim
void rotateFieldAnim(string pathname, float x, float y, float z, float axisx, float axisy, float axisz, float angle, float time);
( ) moveFieldAnim
void moveFieldAnim(string pathname, float x, float y, float z, float time);
( ) transparencyFieldAnim
void transparencyFieldAnim(string pathname, float s, float e, float time);
( ) movePipePointAnimByField
void movePipePointAnimByField(string pathname, int pointIndex, float dx, float dy, float dz, float time);
( ) movePipePointAnim
void movePipePointAnim(string name, int pointIndex, float dx, float dy, float dz, float time);
( ) printTextAnim
void printTextAnim(string pathname, float time);
( ) printTextAnim
void printTextAnim(dword key, float time);
( ) decreaseAnimSpeed
void decreaseAnimSpeed(string animName, float factor, long cycle);
( ) setAnimSpeed
void setAnimSpeed(string animName, float factor);
( ) setAnimTime
void setAnimTime(string animName, float time);
( ) setAnimReversed
void setAnimReversed(string animName, BOOL b);
( ) addChildAnimation
void addChildAnimation(string animName, string animNameChild);
( ) loadAnimation
bool loadAnimation(string animFile);
( ) deleteAnimation
bool deleteAnimation(string animName);
( ) deleteAnimationAndChildren
bool deleteAnimationAndChildren(string animName);
( ) playAnimation
bool playAnimation(string animName, float time);
( ) createJetAnimation
void createJetAnimation(string animName, string pathname, float x, float y, float z, float scaleMin, float scaleMax, float life);
( ) createTrackAnimation
bool createTrackAnimation(string animName, float startTime, float endTime, string pathname, float array& points, int count);
( ) createTrackAnimationEx
bool createTrackAnimationEx(string animName, float startTime, float endTime, string pathname, float array& points);
( ) animJumpTo
void animJumpTo(string animName,float factor);
( ) animJumpToTime
void animJumpToTime(string animName, float time);
( ) animMerge
void animMerge(string animName, string animNewName, float time);
( ) setGeometry2DAnimatingTime
void setGeometry2DAnimatingTime(float time);
( ) setGeometry2DMovingTime
void setGeometry2DMovingTime(float time);
( ) modifyAnimationFieldPath
bool modifyAnimationFieldPath(string name, string oldFieldPath, string newFieldPath);
( ) pauseActiveAnimations
void pauseActiveAnimations(string moduleName);
( ) continueActiveAnimations
void continueActiveAnimations(string moduleName);
( ) createSurfaceAnimation
bool createSurfaceAnimation(string animName, string pathname, float scale, string filename);
( ) setSurfaceAnimationColorSetting
void setSurfaceAnimationColorSetting(string name, int index, float value, float r, float g, float b, float a);
( ) clearSurfaceAnimationColorSettings
void clearSurfaceAnimationColorSettings(string name);
( ) createLineFieldAnimation
bool createLineFieldAnimation(string animName, string pathname, float scale, bool bParticle, string filename);
( ) setPriority
void setPriority(string pathname, int pri);
( ) sndSetVolume
void sndSetVolume(float v);
( ) unloadSound
void unloadSound(string module_name);
( ) loadAnimationSound
void loadAnimationSound(string anim_name);
( ) showField
void showField(string pathname, bool bShow);
( ) showFieldByKey
void showFieldByKey(dword key, bool bShow);
( ) showFieldLocalByKey
void showFieldLocalByKey(dword key, bool bShow);
( ) showFieldLocal
void showFieldLocal(string pathname, bool bShow);
( ) showFieldInViewport
void showFieldInViewport(string pathname, string viewport, bool bShow);
( ) showAnnotation
void showAnnotation(string pathname, bool bShow);
( ) modifyFieldPath
bool modifyFieldPath(string oldPath, string newPath);
( ) modifyFieldPath
bool modifyFieldPath(dword oldKey, dword newKey);
( ) getFieldPath
string getFieldPath(dword key);
( ) getFieldPathByPos
string getFieldPathByPos(float x,float y);
( ) getBoxByKey
void getBoxByKey(dword key, float& ox, float& oy, float& oz, float& r);
( ) checkCollisionByKey
bool checkCollisionByKey(dword key1, dword key2);
( ) setFieldCollision
void setFieldCollision(string fieldPath, bool bCollision);
( ) setFieldCollisionByKey
void setFieldCollisionByKey(dword key, bool bCollision);
( ) resetAllOwnerFieldCollisionByKey
void resetAllOwnerFieldCollisionByKey(dword key);
( ) enableModelCollision
void enableModelCollision(bool bCollision);
( ) checkInternalCollision
bool checkInternalCollision(string fieldPath);
( ) checkInternalBoxCollision
bool checkInternalBoxCollision(string fieldPath);
( ) appendEntityToCollisionTable
void appendEntityToCollisionTable(string name);
( ) appendEntityChildrenToCollisionTable
void appendEntityChildrenToCollisionTable(string name);
( ) createCollisionObject
bool createCollisionObject(string name, int interval, int setting);
( ) pickField
dword pickField(float x, float y);
( ) pickField
dword pickField(float x, float y, float z);
( ) pickField
dword pickField(string pathname, float x, float y, float z);
( ) pick2DObject
dword pick2DObject(float x, float y);
( ) getObjectName
string getObjectName(dword key);
( ) getObjectFullName
string getObjectFullName(dword key);
( ) setTextureParam
void setTextureParam( string pathname, float sx, float sy, float angle, float ofx, float ofy );
( ) setTextureName
void setTextureName( string pathname, string tex_name );
( ) setTextureName
void setTextureName( string pathname, string tex_name, int mapType );
( ) setTexture
void setTexture( string pathname, string filename );
( ) setEmissionByKey
void setEmissionByKey( dword key, float r, float g, float b, bool bAllChildren );
( ) setDiffuseByKey
void setDiffuseByKey( dword key, float r, float g, float b, bool bAllChildren );
( ) setSpecularByKey
void setSpecularByKey( dword key, float r, float g, float b, bool bAllChildren );
( ) setAmbientByKey
void setAmbientByKey( dword key, float r, float g, float b, bool bAllChildren );
( ) setEmission
void setEmission( string pathname, float r, float g, float b, bool bAllChildren );
( ) setDiffuse
void setDiffuse( string pathname, float r, float g, float b, bool bAllChildren );
( ) setSpecular
void setSpecular( string pathname, float r, float g, float b, bool bAllChildren );
( ) setAmbient
void setAmbient( string pathname, float r, float g, float b, bool bAllChildren );
( ) setButtonPosition
void setButtonPosition(string Name, float x, float y, float z);
( ) getButtonPosition
void getButtonPosition(string Name, float& x, float& y, float& z);
( ) setImagePosition
void setImagePosition(string Name, float x, float y, float z);
( ) getImagePosition
void getImagePosition(string Name, float& x, float& y, float& z);
( ) setImagePosition
void setImagePosition(string Name, float x, float y, float z, float offx, float offy);
( ) setImagePositionByKey
void setImagePositionByKey(dword key, float x, float y, float z);
( ) setTextPosition
void setTextPosition(string Name, float x, float y, float z);
( ) setButtonDepth
void setButtonDepth(string Name, float z);
( ) setImageDepth
void setImageDepth(string Name, float z);
( ) setTextDepth
void setTextDepth(string Name, float z);
( ) getButtonPath
string getButtonPath(string name);
( ) setButtonCaption
void setButtonCaption(string name, string caption);
( ) getButtonCaption
string getButtonCaption(string name);
( ) setTextContent
void setTextContent(string pathname, string content);
( ) setTextContent
void setTextContent(dword key, string content);
( ) setTextContentMgr
void setTextContentMgr(string strMgr, string content);
( ) insertText
void insertText(string pathname, string content, float x, float y, float z, float sx, float sy, float sz, float r, float g, float b, string font);
( ) insertAnnotation
void insertAnnotation(string pathname, string content, float tarx, float tary, float tarz, float x, float y, float z, float sx, float sy, float sz, float r, float g, float b, string font);
( ) insertText3d
void insertText3d(string pathname, string content, float x, float y, float z, float scale, float r, float g, float b, string font);
( ) setTextRect
void setTextRect(string pathname, float x1, float y1, float x2, float y2);
( ) getTextRect
void getTextRect(string pathname, float& x1, float& y1, float& x2, float& y2);
( ) insertText
void insertText(dword key, string content, float x, float y, float z, float sx, float sy, float sz, float r, float g, float b, string font);
( ) setTextRect
void setTextRect(dword key, float x1, float y1, float x2, float y2);
( ) getTextRect
void getTextRect(dword key, float& x1, float& y1, float& x2, float& y2);
( ) insertImage
dword insertImage(string name, float x, float y, float z, float w, float h, string& bmpFile, string& tempFile, float transparency, bool bWorldPos, float offX, float offY);
( ) insertImage
dword insertImage(string pathname, string name, float x, float y, float z, float w, float h, string& bmpFile, string& tempFile, float transparency, bool bWorldPos, float offX, float offY);
( ) insertImage
dword insertImage(string pathname, string name, float x, float y, float z, float w, float h, string& bmpFile, string& tempFile, float transparency, bool bWorldPos, float offX, float offY, float x0, float y0, float z0, float r, float g, float b, float lineWidth);
( ) insertButton
void insertButton(dword path_key, string name, string ref_name);
( ) insertButton
void insertButton(string pathname, string name, float x, float y, float z, float width, float height, string normalFile, string normalFileMask, string hoverFile, string hoverFileMask, string pushFile, string pushFileMask);
( ) setImageRect
void setImageRect(string pathname, float x1, float y1, float x2, float y2);
( ) setImageRectGlobal
void setImageRectGlobal(string pathname, float x1, float y1, float x2, float y2);
( ) getImageRect
void getImageRect(string pathname, float& x1, float& y1, float& x2, float& y2);
( ) getImageRectGlobal
void getImageRectGlobal(string pathname, float& x1, float& y1, float& x2, float& y2);
( ) setImageSize
void setImageSize(string pathname, float width, float height);
( ) getImageSize
void getImageSize(string pathname, float& width, float& height);
( ) setImageColor
void setImageColor(string pathname, float r, float g, float b, float a);
( ) setImageTexture
void setImageTexture(string pathname, string texName);
( ) unloadImage
void unloadImage(string pathname);
( ) loadImage
void loadImage(string pathname);
( ) getTextContent
string getTextContent(string pathname);
( ) createAvi
void createAvi(string animName, long life, string pathname, string path, float x1, float y1, float x2, float y2, int count, bool bIs2D);
( ) createPipe
void createPipe(string fieldPathname, float array& points, int count, float radius);
( ) createPipe
void createPipe(string fieldPathname, float array& points, int count, float radius,int curveType,float arcRadius);
( ) updateRopes
void updateRopes(string moduleName);
( ) enableCtrlpt
void enableCtrlpt(string Name, bool bEnable);
( ) enableCtrlptGroup
void enableCtrlptGroup(string moduleName, int gid, bool bEnable);
( ) clickCtrlpt
void clickCtrlpt(string Name);
( ) deleteCtrlpt
void deleteCtrlpt(string Name);
( ) lockCtrlpt
void lockCtrlpt(bool bLockMoving, bool bLockAll);
( ) enableKnobNegative
void enableKnobNegative(string Name,bool bEnable);
( ) insertReaction
void insertReaction(string name, string eventType, string animName);
( ) insertReaction
void insertReaction(string name, string eventType, string animName, string varName, string varValue);
( ) createCtrlpt
void createCtrlpt(string name, string fieldPathname, bool bEnable);
( ) createPole
void createPole(string name, string fieldPathname, float array& points);
( ) pushButtonDown
void pushButtonDown(string name);
( ) releaseButtonUp
void releaseButtonUp(string name);
( ) createMarker
void createMarker(string name, int style, float x, float y, float z, float radius);
( ) setMarkerColor
void setMarkerColor(string name, float r, float g, float b);
( ) setMarkerPosition
void setMarkerPosition(string name, float x, float y, float z);
( ) setMarkerRadius
void setMarkerRadius(string name, float radius);
( ) setMarkerDepth
void setMarkerDepth(string name, float depth);
( ) enableTrigger
void enableTrigger(string Name, bool bEnable);
( ) runTrigger
void runTrigger(string Name);
( ) exp
float exp(float val);
( ) log
float log(float val);
( ) pow
float pow(float val, float index);
( ) sqrt
float sqrt(float val);
( ) atan
float atan(float val);
( ) sin
float sin(float val);
( ) cos
float cos(float val);
( ) tan
float tan(float val);
( ) acos
float acos(float val);
( ) asin
float asin(float val);
( ) rad
float rad(float val);
( ) deg
float deg(float val);
( ) rand
int rand();
( ) rand
int rand(int fmin, int fmax);
( ) rand
void rand(int array& arr, int fmin, int fmax, int num);
( ) arc
bool arc(float array& center, float array& start, float array& end, float delta_angle, bool bCcw, float array& points, float array& count);
( ) ellipse
void ellipse(float array& center, float array& normal, float a, float b, float angle, float array& point);
( ) orbitInit
dword orbitInit(float A, float E, float o, float O, float I, float T);
( ) orbitCalc
void orbitCalc(dword h, float t, float& x, float& y, float& z);
( ) orbitFree
void orbitFree(dword h);
( ) encrypt
bool encrypt(string& key, string& strIn, string& strOut);
( ) decrypt
bool decrypt(string& key, string& strIn, string& strOut);
( ) encryptInDog
// bool encryptInDog(string& key, string& strIn, string& strOut);
( ) encryptInDog
bool encryptInDog(string& key, int dataLen, byte array& dataIn, byte array& dataOut);
( ) getDateInDog
bool getDateInDog(int year, int month, int day, int hour, byte array& date);
( ) setDateInDog
bool setDateInDog(int year, int month, int day, int hour);
( ) encrypt
bool encrypt(string& key, byte array& btsIn, int countIn, byte array& btsOut, int& countOut);
( ) decrypt
bool decrypt(string& key, byte array& btsIn, int countIn, byte array& btsOut, int& countOut);
( ) pointInLoop
bool pointInLoop(float x, float y, float array& loop, int count);
( ) distance
float distance(float array& pt1, float array& pt2);
( ) distance
float distance(string coordName1, string coordName2);
( ) distance
float distance(string coordName1, float array& pt2);
( ) distance
float distance(float array& pt1, string coordName2);
( ) dot
float dot(float array& vec1, float array& vec2);
( ) dot
float dot(string vectorName1, string vectorName2);
( ) dot
float dot(string vectorName1, float array& vec2);
( ) dot
float dot(float array& vec1, string vectorName2);
( ) cross
void cross(float array& vec1, float array& vec2, float array& resVec);
( ) cross
void cross(string vectorName1, string vectorName2, float array& resVec);
( ) cross
void cross(string vectorName1, float array& vec2, float array& resVec);
( ) cross
void cross(float array& vec1, string vectorName2, float array& resVec);
( ) intersect
bool intersect(float array& pt1, float array& pt2, float array& pt3, float array& pt4, float array& inter);
( ) length
float length(float array& pt1);
( ) length
float length(float x, float y, float z);
( ) getArraySize
int getArraySize(int array& arr);
( ) getArraySize
int getArraySize(long array& arr);
( ) getArraySize
int getArraySize(float array& arr);
( ) getArraySize
int getArraySize(string array& arr);
( ) setArraySize
void setArraySize(int array& arr, int size);
( ) setArraySize
void setArraySize(long array& arr, int size);
( ) setArraySize
void setArraySize(float array& arr, int size);
( ) setArraySize
void setArraySize(string array& arr, int size);
( ) setArraySize
void setArraySize(string arrName, int size);
( ) normalize
void normalize(float array& arr);
( ) normalize
void normalize(string vectorName);
( ) setHistoryFloatArray
void setHistoryFloatArray(float array& arr, float val);
( ) listPushBack
bool listPushBack(string listName, string valName);
( ) listPopBack
bool listPopBack(string listName, string valName);
( ) listPushFront
bool listPushFront(string listName, string valName);
( ) listPopFront
bool listPopFront(string listName, string valName);
( ) listGetFront
bool listGetFront(string listName, string valName);
( ) listGetBack
bool listGetBack(string listName, string valName);
( ) listGetCount
int listGetCount(string listName);
( ) computePositionByKey
bool computePositionByKey(dword key1, float x1, float y1, float z1, dword key2, float& x2, float& y2, float& z2);
( ) computePositionByKey
bool computePositionByKey(dword key1, float array& points1, dword key2, float array& points2);
( ) computePositionArray
bool computePositionArray(string path1, float array& points1, int count, string path2, float array& points2);
( ) computeVectorByKey
bool computeVectorByKey(dword key1, float x1, float y1, float z1, dword key2, float& x2, float& y2, float& z2);
( ) computeMatrixByKey
bool computeMatrixByKey(dword key1, float array& matrix1, dword key2, float array& matrix2);
( ) computeMatrixMulti
void computeMatrixMulti(float array& matrix1, float array& matrix2, float array& matrix);
( ) computePointProjectionOnPlane
void computePointProjectionOnPlane(float array& pt, float array& basept, float array& normal, float array& proj);
( ) computeIntersection
bool computeIntersection(float array& pt1, float array& pt2, dword key, float array& inter);
( ) computeIntersection
bool computeIntersection(float array& pt1, float array& pt2, dword key, float array& inter, float array& normal);
( ) computeReflection
bool computeReflection(float array& pt1, float array& pt2, dword key, float array& inter, float array& direction);
( ) computeVectorAngleTo
float computeVectorAngleTo(float array& vec1, float array& vec2, float array& axis);
( ) computeVectorCross
void computeVectorCross(float array& vec1, float array& vec2, float array& vec3);
( ) computeVectorDot
float computeVectorDot(float array& vec1, float array& vec2);
( ) setClipPlane
// void setClipPlane(dword key, float array& pt, float array& normal);
( ) setClipPlane
// void setClipPlane(dword key, float x, float y, float z, float nx, float ny, float nz);
( ) resetClipPlane
// void resetClipPlane(dword key);
( ) clearClipPlane
void clearClipPlane();
( ) setClipPlane
void setClipPlane(string field_path, string plane_name, float array& pt, float array& normal);
( ) setClipPlane
void setClipPlane(string field_path, string plane_name, float x, float y, float z, float nx, float ny, float nz);
( ) enableClipPlane
void enableClipPlane(string plane_name, bool b);
( ) enableSection
void enableSection(string section_name, bool b);
( ) setSectionPosition
void setSectionPosition(string section_name, float x, float y, float z);
( ) setSectionNormal
void setSectionNormal(string section_name, float nx, float ny, float nz);
( ) setSectionRadius
void setSectionRadius(string section_name, float r);
( ) setSectionLength
void setSectionLength(string section_name, float l);
( ) setClipPlaneEx
void setClipPlaneEx(dword key, float array& pt, float array& normal);
( ) setClipPlaneEx
void setClipPlaneEx(dword key, float x, float y, float z, float nx, float ny, float nz);
( ) resetClipPlaneEx
void resetClipPlaneEx(dword key);
( ) computeBLToXY
void computeBLToXY(float b, float l, float& x, float& y);
( ) computeXYToBL
void computeXYToBL(float x, float y, float& b, float& l);
( ) setArcMask
void setArcMask(string pathname, float angle, bool bFade);
( ) eraseMask
void eraseMask(float depth, bool b);
( ) computeLightProjection
bool computeLightProjection(string lightField, float array position, float array direction, float fov, float radius, float precision, string field, float array& circlePoints, float array& circleNormals, int array& pointCounts, int& num);
( ) findRouteTo
// bool findRouteTo(float x, float y, float z, int timeStep);
( ) buildRouteMap
bool buildRouteMap();
( ) getRoutePoints
bool getRoutePoints(string routeName, float u1, float u2, float array& points, int& count);
( ) getDistanceToRoute
float getDistanceToRoute(float x, float y, float z, string routeName);
( ) itoa
string itoa(int val);
( ) itoa16
string itoa16(int val);
( ) atoi
int atoi(string vstr);
( ) ftoa
string ftoa(float val, int intNum, int decimalNum);
( ) ftoa
string ftoa(double val, int intNum, int decimalNum);
( ) atof
float atof(string vstr);
( ) trim
string trim(string vstr);
( ) getStringLength
int getStringLength(string vstr);
( ) getStringContent
string getStringContent(string vstr, int start, int end);
( ) ascii
byte ascii(string char);
( ) stringInclude
bool stringInclude(string str1, string str2);
( ) stringEqual
bool stringEqual(string str1, string str2);
( ) stringToValues
void stringToValues(string str, float array& values, int& count);
( ) valuesToString
void valuesToString(float array& values, int count, string& str);
( ) bytesToString
void bytesToString(byte array& bytes, int len, string& str);
( ) bytesToString
void bytesToString(byte array& bytes, int len, string& str, bool isUnicode);
( ) stringToBytes
void stringToBytes(string str, byte array& bytes, int& len);
( ) stringToBytes
void stringToBytes(string str, byte array& bytes, int& len, bool isUnicode);
( ) findString
int findString(string str, string subStr);
( ) splitString
void splitString(string str, string division, string array& subStrArr, int& count);
( ) makeDword
dword makeDword(byte bt1, byte bt2, byte bt3, byte bt4);
( ) makeWord
int makeWord(byte bt1, byte bt2);
( ) splitDword
void splitDword(dword val, byte& bt1, byte& bt2, byte& bt3, byte& bt4);
( ) splitWord
void splitWord(int val, byte& bt1, byte& bt2);
( ) calcCRC
void calcCRC(byte array& bytes, int count, byte& crcHi, byte& crcLo);
( ) calcLRC
byte calcLRC(byte array& bytes, int count);
( ) calcLRCAscii
byte calcLRCAscii(byte array& bytes, int count);
( ) getBit
byte getBit(dword d, int index);
( ) setBit
void setBit(dword& d, int index, byte val);
( ) floatToWord
int floatToWord(float val);
( ) floatToDword
dword floatToDword(float val);
( ) dwordToFloat
float dwordToFloat(dword val);
( ) and
byte and(byte byte1, byte byte2);
( ) or
byte or(byte byte1, byte byte2);
( ) xor
byte xor(byte byte1, byte byte2);
( ) getBLFromXY
// void getBLFromXY(float x, float y, float& B, float& L);
( ) setVariableInt
void setVariableInt(string varName, int val);
( ) setVariableFloat
void setVariableFloat(string varName, float val);
( ) setVariableString
void setVariableString(string varName, string str);
( ) setVariableLong
void setVariableLong(string varName, long val);
( ) getVariableInt
int getVariableInt(string varName);
( ) lockVariableInt
int lockVariableInt(string varName);
( ) unlockVariableInt
int unlockVariableInt(string varName);
( ) getVariableFloat
float getVariableFloat(string varName);
( ) getVariableString
string getVariableString(string varName);
( ) getVariableLong
long getVariableLong(string varName);
( ) getVariableHandle
dword getVariableHandle(string varName);
( ) resetScrew
void resetScrew(string varName);
( ) resetAllScrews
void resetAllScrews();
( ) createVariable
bool createVariable(string varName, string type);
( ) vportSetFollow
void vportSetFollow(string vport, string main_vport, float angle, float lens);
( ) vportGetFollow
void vportGetFollow(string vport, string main_vport, float& angle, float& lens);
( ) vportSetResolution
void vportSetResolution(string vport, int x, int y);
( ) vportGetResolution
void vportGetResolution(string vport, int& x, int& y);
( ) vportSetRect
void vportSetRect(string vport, float x1, float y1, float x2, float y2);
( ) vportGetRect
void vportGetRect(string vport, float& x1, float& y1, float& x2, float& y2);
( ) vportSetPixelFactor
void vportSetPixelFactor(string vport, float f);
( ) vportSetPerspectiveScale
void vportSetPerspectiveScale(float f);
( ) vportSurroundViewports
void vportSurroundViewports(float horAngle, float verAngle);
( ) vportSetActive
void vportSetActive(string vport);
( ) vportSetClipPlaneParam
void vportSetClipPlaneParam(string vportName, bool bFixed, float fNear, float fFar);
( ) setFieldProjector
void setFieldProjector(string pathname, string name);
( ) setProjectorTextureFile
void setProjectorTextureFile(string name, string fielname);
( ) setProjectorTextureName
void setProjectorTextureName(string name, string texName);
( ) setProjectorBlend
void setProjectorBlend(string name, float b);
( ) setProjectorBlendType
void setProjectorBlendType(string name, int type);
( ) operateField
void operateField(string opType, string fieldPath);
( ) operateField
void operateField(string opType, string fieldPath, float ox, float oy, float oz);
( ) operateField
void operateField(string opType, string fieldPath, float ox, float oy, float oz, float dir_x, float dir_y, float dir_z);
( ) loadField
void loadField(string father, dword buffer, long size);
( ) loadField
void loadField(string father, string filename);
( ) loadModelToModule
void loadModelToModule(string moduleName, string filename, bool bLights);
( ) unloadModelFromModule
void unloadModelFromModule(string moduleName, string modelName);
( ) allKeyToFieldPath
void allKeyToFieldPath(string moduleName);
( ) allFieldPathToKey
void allFieldPathToKey(string moduleName);
( ) linkField
void linkField(string field1, string field2, int linkType);
( ) unlinkField
void unlinkField(string field1, string field2);
( ) linkField
void linkField(string field1, string field2, int linkType, float ox, float oy, float oz, float dir_x, float dir_y, float dir_z);
( ) setFieldHome
void setFieldHome(string field, string home_field, float array home_matrix, float dis, float angle, string animName);
( ) initFieldHome
void initFieldHome(string field, float dis, float angle, string animName);
( ) clearFieldHome
void clearFieldHome(string field);
( ) setToolProperty
void setToolProperty(string filename, string filenameMask, string pathname, string toolType, string toolParam);
( ) setToolObject
void setToolObject(string name);
( ) putFieldBeforeCamera
void putFieldBeforeCamera(string field, bool bVertical);
( ) printString
void printString(float x, float y, string str);
( ) messageBox
void messageBox( string msg );
( ) pause
void pause( string msg );
( ) pause
void pause( int iVal );
( ) pause
void pause( long lVal );
( ) pause
void pause( float fVal );
( ) pause
void pause();
( ) updateDisplay
void updateDisplay();
( ) enableUpdate
void enableUpdate(bool b);
( ) keyboardInput
void keyboardInput(string wndName, string inputStr);
( ) updateMappingWindow
void updateMappingWindow(string wndName);
( ) updateMappingWindowQuickly
void updateMappingWindowQuickly(string wndName);
( ) outputDisplay
void outputDisplay(string display);
( ) setPerspectiveScale
void setPerspectiveScale(float s);
( ) outputMessage
void outputMessage(string msg);
( ) charaCreate
handle charaCreate(string name, string filename, float scale, string fieldPath);
( ) charaDelete
void charaDelete(handle h);
( ) charaMoveTo
void charaMoveTo(handle h, float time, float x, float y, float z);
( ) charaMoveTo
void charaMoveTo(handle h, float x, float y, float z);
( ) charaMoveTo
void charaMoveTo(string name, float time, float x, float y, float z);
( ) charaGetHandle
handle charaGetHandle(string name);
( ) charaGetCurrent
handle charaGetCurrent();
( ) charaGetName
string charaGetName(handle h);
( ) charaSetID
void charaSetID(handle h, long id);
( ) charaGetID
long charaGetID(handle h);
( ) charaGetKey
long charaGetKey(handle h);
( ) charaStartAction
void charaStartAction(handle h, int index, bool loop);
( ) charaStartAction
void charaStartAction(handle h, int index, bool loop, bool autoLock);
( ) charaStopAction
void charaStopAction(handle h, int index);
( ) charaSetPosition
void charaSetPosition(handle h, float x, float y, float z);
( ) charaUpdate
void charaUpdate(handle h, float delta_time);
( ) charaUpdate
void charaUpdate(handle h, float delta_time, bool sync);
( ) charaSetAngle
void charaSetAngle(handle h, float angle);
( ) charaRotateTo
void charaRotateTo(handle h, float angle);
( ) charaRotate
void charaRotate(handle h, bool bleft);
( ) charaMove
void charaMove(handle h, bool bForward);
( ) charaSetCurrent
void charaSetCurrent(handle h);
( ) charaSetProperty
void charaSetProperty(handle h, string name, string value);
( ) charaGetProperty
float charaGetProperty(handle h, string name);
( ) charaGetStrProperty
string charaGetStrProperty(handle h, string name);
( ) charaGoto
void charaGoto(handle h, float x, float y, float z, float angle, bool isWalking);
( ) getMocapData
void getMocapData(string name, int typeIndex, float array& data, int& length);
( ) getMocapHandTrack
void getMocapHandTrack( string name, byte type, float array& tranform);
( ) getMocapHandGesture
void getMocapHandGesture(string name, byte type, int& iGesture);
( ) enableMocap
void enableMocap(string name, bool bOpen);
( ) setMocapData
void setMocapData(string name, int typeIndex, float array data, int length);
( ) setMocapProp
void setMocapProp(string name, int boneId, dword keyPart, bool bBind);
( ) setMocapProp
void setMocapProp(string name, int boneId, dword keyPart);
( ) setMocapPropEx
void setMocapPropEx(string name, int boneId, dword keyPart, int type, float x, float y, float z, float axisx, float axisy, float axisz);
( ) setMocapPropEx
void setMocapPropEx(string name, int boneId, dword keyPart, int type, string pole);
( ) setMocapPropEx
void setMocapPropEx(string name, int boneId, dword keyPart, int type);
( ) sendMocapMsg
int sendMocapMsg(string name, string cmd, long value);
( ) sendMocapMsg
int sendMocapMsg(string name, string cmd);
( ) enableShadow
void enableShadow(bool b);
( ) setGlowStrength
void setGlowStrength(float s);
( ) setGlowScale
void setGlowScale(float s);
( ) setMaterialBrightness
void setMaterialBrightness(string fieldname, float b);
( ) renderProbes
void renderProbes();
( ) setSSAOFactor
void setSSAOFactor(float f);
( ) setSSAORadius
void setSSAORadius(float f);
( ) renderToFile
void renderToFile(string filename, int w, int h, dword key, float ex, float ey, float ez, float tx, float ty, float tz, float fov, int type);
( ) renderToFile
void renderToFile(string filename, int w, int h, string field, float array eye, float array tar, float fov, int type);
( ) createRenderTrack
handle createRenderTrack(int w, int h);
( ) recordRenderTrackBackground
void recordRenderTrackBackground(handle hTrack);
( ) recordRenderTrackFrame
void recordRenderTrackFrame(handle hTrack);
( ) renderTrackToImage
bool renderTrackToImage(handle hTrack, string fieldpath);
( ) releaseRenderTrack
void releaseRenderTrack(handle hTrack);
( ) fileOpen
file fileOpen(string filename, string option);
( ) fileClose
void fileClose(file fp);
( ) fileSeekLine
bool fileSeekLine(file fp, long pos);
( ) fileGetLines
long fileGetLines(file fp);
( ) fileReadString
bool fileReadString(file fp, string& word, string division);
( ) fileReadLine
bool fileReadLine(file fp, string& line);
( ) fileWriteLine
bool fileWriteLine(file fp, string lingString);
( ) fileGetLength
long fileGetLength(file fp);
( ) fileRead
bool fileRead(file fp, dword buffer, long len);
( ) fileWrite
bool fileWrite(file fp, dword buffer, long len);
( ) loadComponent
bool loadComponent(string componentName, string filename);
( ) loadComponent
bool loadComponent(string componentName, string filename, string moduleName);
( ) loadComponent
bool loadComponent(string componentName, string filename, int nType);
( ) unloadComponent
bool unloadComponent(string componentName);
( ) Component2Module
bool Component2Module(string componentName);
( ) executeComponent
bool executeComponent(string componentName, string templModuleName);
( ) createEntity
bool createEntity(string componentName, string templModuleName);
( ) deleteEntity
bool deleteEntity(string componentName);
( ) executeEntity
bool executeEntity(string componentName);
( ) bindEntityToField
bool bindEntityToField(string componentName, string fieldPath);
( ) bindEntities
bool bindEntities(string componentName1, string componentName2);
( ) unbindEntity
void unbindEntity(string componentName);
( ) moveEntityOnRoute
bool moveEntityOnRoute(string componentName, string routeName, float totalTime, float startTime);
( ) moveEntityAutoPath
bool moveEntityAutoPath(string componentName, string fromCoord, string toCoord, float totalTime, float startTime);
( ) moveEntityAutoPath
bool moveEntityAutoPath(string componentName, string fromCoord, string toCoord, float totalTime, float startTime, bool drawPath);
( ) moveEntityAutoPathWithSpeed
bool moveEntityAutoPathWithSpeed(string componentName, string fromCoord, string toCoord, float speed, float startTime);
( ) moveEntityAutoPathWithSpeed
bool moveEntityAutoPathWithSpeed(string componentName, string fromCoord, string toCoord, float speed, float startTime, bool drawPath);
( ) moveEntityOnRouteAnim
string moveEntityOnRouteAnim(string componentName, string routeName, float totalTime, float startTime);
( ) moveEntityAutoPathAnim
string moveEntityAutoPathAnim(string componentName, string fromCoord, string toCoord, float totalTime, float startTime);
( ) moveEntityAutoPathWithSpeedAnim
string moveEntityAutoPathWithSpeedAnim(string componentName, string fromCoord, string toCoord, float speed, float startTime);
( ) placeEntity
void placeEntity(string componentName, float x, float y, float z);
( ) getRouteLength
float getRouteLength(string name);
( ) getValueInt
int getValueInt(string componentName, string varName);
( ) getValueFloat
float getValueFloat(string componentName, string varName);
( ) getValueString
string getValueString(string componentName, string varName);
( ) setValueInt
void setValueInt(string componentName, string varName, int i);
( ) setValueFloat
void setValueFloat(string componentName, string varName, float f);
( ) setValueString
void setValueString(string componentName, string varName, string s);
( ) bindTriggerToVariable
void bindTriggerToVariable(string triName, string componentName, string varName);
( ) bindTriggerToVariable
void bindTriggerToVariable(string triName, string varName);
( ) bindTriggerToVariable
void bindTriggerToVariable(string triName);
( ) sendEntityMessage
void sendEntityMessage(string componentName, string msg);
( ) sendSystemMessage
void sendSystemMessage(string msg);
( ) malloc
dword malloc(long len);
( ) free
void free(dword m);
( ) initialID
void initialID(string IDName, long maxID);
( ) allocID
long allocID(string IDName);
( ) releaseID
void releaseID(string IDName, long ID);
( ) wordOpenFile
handle wordOpenFile(string filename, string templFilename, bool bCreateIfNoExists);
( ) wordCloseFile
void wordCloseFile(handle app);
( ) wordAppendString
bool wordAppendString(handle app, string lineString, string fontName, int fontSize, float array fontColor, bool fontBold, bool fontIterlic, bool underline);
( ) wordExecuteFile
bool wordExecuteFile(string filename);
( ) wordAppendTable
handle wordAppendTable(handle app, int rows, int cols);
( ) wordTableDeleteCell
void wordTableDeleteCell(handle tab, int row, int col);
( ) wordTableMergeCell
void wordTableMergeCell(handle tab, int row, int col, int row2, int col2);
( ) wordSelectionMoveUp
void wordSelectionMoveUp(handle app, int type, int units);
( ) wordSelectionMoveDown
void wordSelectionMoveDown(handle app, int type, int units);
( ) wordSelectionMoveLeft
void wordSelectionMoveLeft(handle app, int type, int units);
( ) wordSelectionMoveRight
void wordSelectionMoveRight(handle app, int type, int units);
( ) wordSelectionTypeText
void wordSelectionTypeText(handle app, string text);
( ) wordSelectionTypeParagraph
void wordSelectionTypeParagraph(handle app);
( ) flashCreate
handle flashCreate(float x1, float y1, float x2, float y2);
( ) flashPlay
void flashPlay(handle flash, string address);
( ) flashStop
void flashStop(handle flash);
( ) flashClose
void flashClose(handle flash);
( ) flashDestroy
void flashDestroy(handle flash);
( ) mediaOpen
bool mediaOpen(string filename);
( ) mediaClose
void mediaClose();
( ) mediaSetWindowPos
void mediaSetWindowPos(float l, float t, float r, float b);
( ) mediaPlay
void mediaPlay();
( ) mediaPause
void mediaPause();
( ) mediaContinue
void mediaContinue();
( ) mediaStop
void mediaStop();
( ) mediaShow
void mediaShow(bool bShow);
( ) mediaGetDuration
float mediaGetDuration();
( ) mediaGetCurrentPosition
float mediaGetCurrentPosition();
( ) mediaSetCurrentPosition
void mediaSetCurrentPosition(float pos);
( ) mediaShowPlayBar
void mediaShowPlayBar(bool b);
( ) recordScreenBegin
void recordScreenBegin(string aviFile, int width, int height);
( ) recordScreenBegin
void recordScreenBegin(string aviFile);
( ) recordScreen
void recordScreen();
( ) recordScreenEnd
void recordScreenEnd();
( ) loadLibrary
handle loadLibrary(string filename);
( ) call
dword call(handle hDll, string funcName, dword param);
( ) dllLoad
handle dllLoad(string filename);
( ) dllFree
bool dllFree(handle hDll);
( ) dllCall
dword dllCall(handle hDll, string funcName, dword param);
( ) dllCall
dword dllCall(handle hDll, string funcName, string param);
( ) dllCall
dword dllCall(handle hDll, string funName, string param1, string param2);
( ) pluginCall
dword pluginCall(string dllName, int index, dword param);
( ) pluginCall
dword pluginCall(string dllName, string funName, dword param);
( ) pluginCall
dword pluginCall(string dllName, string funName, dword param1, dword param2);
( ) pluginCall
dword pluginCall(string dllName, string funName, dword param1, dword param2, dword param3);
( ) pluginCall
dword pluginCall(string dllName, string funName, dword param1, dword param2, dword param3, dword param4);
( ) pluginCall
dword pluginCall(string dllName, string funName, dword param1, dword param2, dword param3, dword param4, dword param5);
( ) pluginCall
dword pluginCall(string dllName, string funName, dword param1, dword param2, dword param3, dword param4, dword param5, dword param6);
( ) pluginCallf
dword pluginCallf(string dllName, string funName, float param);
( ) pluginGetValues
string pluginGetValues(dword dwValue);
( ) pluginGetValuei
int pluginGetValuei(dword dwValue);
( ) pluginGetValuef
float pluginGetValuef(dword dwValue);
( ) pluginIsLoaded
dword pluginIsLoaded(string dllName);
( ) dlgGetNetConnectSetting
int dlgGetNetConnectSetting(string& host, int& port, string& user, string& password);
( ) dlgGetIdName
bool dlgGetIdName(string& id, string& name, string& unit);
( ) dlgGetLoginInfo
bool dlgGetLoginInfo(string& user, string& password);
( ) dlgGetFaults
bool dlgGetFaults(int array& idArray, int& count);
( ) dlgGetSingleFault
bool dlgGetSingleFault(int & causeId);
( ) dlgGetSingleFault
bool dlgGetSingleFault(int & processId, int& causeId);
( ) dlgSetMisfunction
bool dlgSetMisfunction(int array& idArray, int& count);
( ) dlgSetSingleMisfunction
bool dlgSetSingleMisfunction(int & id);
( ) dlgExamination
bool dlgExamination(string questionFile, int questionCount, int limitedTime, int& score);
( ) examInitial
void examInitial(int questionCount, int limitedTime);
( ) examAddQuestion
void examAddQuestion(int type, string title, string option1, string option2, string option3, string option4, float score, int answer);
( ) examShow
void examShow(bool bShow);
( ) examGetScore
float examGetScore();
( ) getDate
void getDate(int& year, int& month, int& day);
( ) getTime
void getTime(int& hour, int& munite, int& seconds);
( ) getWeek
void getWeek(int& week);
( ) getTickCount
dword getTickCount();
( ) getRelativeTickCount
dword getRelativeTickCount();
( ) tick
dword tick();
( ) appendListener
void appendListener(object& prog);
( ) removeListener
void removeListener(object& prog);
( ) getCurModulePath
string getCurModulePath();
( ) getProgramName
string getProgramName(object& prog);
( ) enableOperator
void enableOperator(bool b);
( ) setCurOperator
dword setCurOperator(string opName, dword param, dword array& selectSet, int count);
( ) setCurOperator
dword setCurOperator(string opName);
( ) setCurOperator
dword setCurOperator(string opName, dword key);
( ) getOperatorType
string getOperatorType(handle hOp);
( ) getMotionTrack
void getMotionTrack(handle hOp, float array& points, float& count);
( ) getImagePath
string getImagePath(string name);
( ) getWholeFilePath
string getWholeFilePath(string localPath);
( ) getCursorPos
void getCursorPos(float& x, float& y);
( ) setCursorPos
void setCursorPos(float x, float y);
( ) createCursor
void createCursor(string cursorName, int width, float height, int hotx, int hoty, string imageFile, string maskFile);
( ) showCursor
void showCursor(bool b);
( ) setCursor
void setCursor(string cursorName);
( ) getWindow
dword getWindow();
( ) getMainWindow
dword getMainWindow();
( ) setMainWindowPosition
void setMainWindowPosition(int x1, int y1, int x2, int y2);
( ) getCurCtrlPoint
string getCurCtrlPoint();
( ) enableMouseButton
void enableMouseButton(int button, bool b);
( ) getWorldPos
void getWorldPos(float sx, float sy, float& x, float& y, float& z);
( ) windowPixelTo2DPos
void windowPixelTo2DPos(int px, int py, float& x, float& y);
( ) screenPixelTo2DPos
void screenPixelTo2DPos(int px, int py, float& x, float& y);
( ) worldPosToScreenPos
void worldPosToScreenPos(float x, float y, float z, float& fx, float& fy);
( ) objectPosToScreenPos
void objectPosToScreenPos(string fieldpath, float x, float y, float z, float& fx, float& fy);
( ) keyDownd
void keyDownd(string key);
( ) keyUp
void keyUp(string key);
( ) setSceneMaxRadius
void setSceneMaxRadius(float r);
( ) setProjectionRatio
void setProjectionRatio(float r);
( ) setTickFactor
void setTickFactor(float f);
( ) setFontPath
void setFontPath(string fontName, string fontFile);
( ) pauseSystem
void pauseSystem();
( ) continueSystem
void continueSystem();
( ) stopSystem
void stopSystem();
( ) sleep
void sleep(int time);
( ) comOpen
dword comOpen(int comm_id);
( ) comSetBaud
dword comSetBaud(dword handle, int buad);
( ) comClose
void comClose(dword handle);
( ) comSend
void comSend(dword handle, byte array& bytes, long count);
( ) OnCommReceive
// void OnCommReceive(dword hComm);
( ) trackPopupMenu
void trackPopupMenu(dword hwnd, int x, int y, string menuName);
( ) showPopupMenuBottom
void showPopupMenuBottom(float x, float y, string menuName);
( ) showPopupMenu
void showPopupMenu(float x, float y, string menuName);
( ) enableMenuItem
void enableMenuItem(string menuName, long id, bool b);
( ) checkMenuItem
void checkMenuItem(string menuName, long id, bool b);
( ) createMenu
void createMenu(string menuName);
( ) addSubMenuItem
void addSubMenuItem(string menuName, string fatherMenuName, string subMenuName, long subId);
( ) clearMenuItems
void clearMenuItems(string menuName);
( ) setMenuBackColor
void setMenuBackColor(string menuName, float r, float g, float b);
( ) showActiveMagicMenu
//void showActiveMagicMenu(bool b);
( ) setActiveMagicMenu
//void setActiveMagicMenu(string menuName);
( ) setMenuCaption
void setMenuCaption(string menuName, string caption);
( ) getMenuCaption
void getMenuCaption(string menuName, string& caption);
( ) updateMenuTreePos
void updateMenuTreePos(string menuName);
( ) selectMenu
void selectMenu(string menuName, string subMenuName);
( ) foldMenu
void foldMenu(string menuName);
( ) moveSubMenuUp
void moveSubMenuUp(string menuName);
( ) moveSubMenuDown
void moveSubMenuDown(string menuName);
( ) setMenuFirstIndex
void setMenuFirstIndex(string menuName, int index);
( ) setMenuMaxVisibleCount
void setMenuMaxVisibleCount(string menuName, int count);
( ) getMenuActiveCount
int getMenuActiveCount(string menuName);
( ) sendCommand
int sendCommand(int id, dword param);
( ) postCommand
bool postCommand(int id, dword param);
( ) notifyCtrlEvent
void notifyCtrlEvent(dword param);
( ) notifyCtrlEvent
void notifyCtrlEvent(int id, dword param);
( ) notifyWebMessage
void notifyWebMessage(string msg);
( ) mapCreate
void mapCreate(string name, string filename, float x, float y, float z, float heightDis);
( ) mapLocatePoint
void mapLocatePoint(string name, string imageName, string pathname, float x, float y, float z);
( ) mapLocateCamera
void mapLocateCamera(string name, string imageName);
( ) mapSetPosition
void mapSetPosition(string name, float x, float y, float z);
( ) mapSetPosition
void mapSetPosition(string name, string posType);
( ) mapFollowPoint
void mapFollowPoint(string pathname, float x, float y, float z);
( ) mapFollowCamera
void mapFollowCamera(string name);
( ) mapGetRoute
void mapGetRoute(int& count, float array& points);
( ) mapSetProp
void mapSetProp(string name, string pname, string pval);
( ) setWaveLevel
void setWaveLevel(int level);
( ) setWaveAmplitude
void setWaveAmplitude(float amp);
( ) setWeather
void setWeather(string type);
( ) setSun
void setSun(float theta, float phi, float exposure);
( ) setSunColor
void setSunColor(float r, float g, float b);
( ) setWind
void setWind(float x, float y, float len);
( ) createWorld
void createWorld();
( ) createSea
void createSea();
( ) setSeaColor
void setSeaColor(float r, float g, float b, float a);
( ) enableSea
void enableSea(bool b);
( ) setSeaPosition
void setSeaPosition(float x, float y, float z);
( ) enableSun
void enableSun(bool b);
( ) enableAtmosphere
void enableAtmosphere(bool b);
( ) enableLight
void enableLight(int index, bool b);
( ) setLightPosition
void setLightPosition(int index, float x, float y, float z);
( ) setLightDiffuse
void setLightDiffuse(int index, float r, float g, float b);
( ) setLightAmbient
void setLightAmbient(int index, float r, float g, float b);
( ) setLightSpecular
void setLightSpecular(int index, float r, float g, float b);
( ) loadLights
void loadLights(string fieldpath, string filename);
( ) removeLights
void removeLights(string fieldpath);
( ) setFogDensity
void setFogDensity(string vport, float density);
( ) setFogColor
void setFogColor(string vport, float r, float g, float b);
( ) setFogColor
void setFogColor(string vport, float h1, float h2, float r, float g, float b);
( ) enableFog
//void enableFog(string fieldName, bool b);
( ) enableFog
void enableFog(string vport, bool b);
( ) setSkyBox
void setSkyBox(string filename);
( ) createCloud
void createCloud(string name, float B, float L, float H, float sx, float sy, float sz);
( ) setCloudDensity
void setCloudDensity(string name, float d);
( ) setCloudRainFactor
void setCloudRainFactor(string name, float f);
( ) setCloudPosition
void setCloudPosition(string name, float B, float L, float H);
( ) setCloudSize
void setCloudSize(string name, float sx, float sy, float sz);
( ) setCloudWeather
void setCloudWeather(string name, string filename);
( ) createWake
handle createWake(string fieldpath, float ox, float oy, float oz, float fx, float fy, float fz, float ux, float uy, float uz, float l, float w);
( ) enableWake
void enableWake(handle hWake, bool b);
( ) shipCreate
bool shipCreate(string shipName);
( ) shipDelete
bool shipDelete(string shipName);
( ) shipInitialize
void shipInitialize(string shipName, float x, float y, float z, float courseAngle);
( ) shipSetActive
void shipSetActive(string shipName, bool bActive);
( ) shipSetOnSea
void shipSetOnSea(string shipName);
( ) shipSetPropellerSpeed
void shipSetPropellerSpeed(string shipName, float speed);
( ) shipSetRudderAngle
void shipSetRudderAngle(string shipName, float angle);
( ) shipGetPropellerSpeed
void shipGetPropellerSpeed(string shipName, float& speed);
( ) shipGetSpeed
void shipGetSpeed(string shipName, float& speed);
( ) shipGetRudderAngle
void shipGetRudderAngle(string shipName, float& angle);
( ) shipSetMassFactor
void shipSetMassFactor(string shipName, float factor);
( ) shipSetThrustFactor
void shipSetThrustFactor(string shipName, float factor);
( ) shipSetRudderFactor
void shipSetRudderFactor(string shipName, float factor);
( ) shipSetResistFactor
void shipSetResistFactor(string shipName, float factor);
( ) shipSetStabilityFactor
void shipSetStabilityFactor(string shipName, float factor);
( ) shipPutCamera
void shipPutCamera(string shipName, float array values, bool bSway);
( ) shipSetField
void shipSetField(string shipName, string filedPath);
( ) shipSetCenter
void shipSetCenter(string shipName, float x, float y, float z);
( ) shipSetForward
void shipSetForward(string shipName, float x, float y, float z);
( ) shipSetUpward
void shipSetUpward(string shipName, float x, float y, float z);
( ) shipSetWidth
void shipSetWidth(string shipName, float width);
( ) shipSetLength
void shipSetLength(string shipName, float length);
( ) shipSetDeep
void shipSetDeep(string shipName, float deep);
( ) shipSetDraught
void shipSetDraught(string shipName, float draught);
( ) shipSetHeadLength
void shipSetHeadLength(string shipName, float len);
( ) shipGetCourseAngle
void shipGetCourseAngle(string shipName, float& angle);
( ) shipGetHeelingAngle
void shipGetHeelingAngle(string shipName, float& angle);
( ) shipGetTrimmingAngle
void shipGetTrimmingAngle(string shipName, float& angle);
( ) shipGetPosition
void shipGetPosition(string shipName, float& x, float& y);
( ) shipAddRoutePoint
void shipAddRoutePoint(string shipName, float x, float y);
( ) shipClearRoutePoints
void shipClearRoutePoints(string shipName);
void shipBeginNavigate(string shipName);
void shipEndNavigate(string shipName);
( ) shipGetTarget
bool shipGetTarget(string shipName, int& index, float& dis);
( ) shipSetProperty
void shipSetProperty(string shipName, string propName, string value);
( ) planeCreate
bool planeCreate(string planeName);
( ) planeDelete
bool planeDelete(string planeName);
( ) planeSetField
void planeSetField(string planeName, string filedPath);
( ) planeSetTruss
void planeSetTruss(string planeName, float ox, float oy, float oz, float fx, float fy, float fz, float ux, float uy, float uz);
( ) planeInitialize
void planeInitialize(string planeName, float x, float y, float z, float courseAngle);
( ) planeSetActive
void planeSetActive(string planeName, bool bActive);
( ) planeOperate
void planeOperate(string planeName, string command, float param);
( ) planeGetValue
bool planeGetValue(string planeName, string type, float& value);
( ) planeSetValue
bool planeSetValue(string planeName, string type, float value);
( ) planeSetValues
bool planeSetValues(string planeName, string type, float array& value, int count);
( ) planeGetStatus
bool planeGetStatus(string planeName, string& sta);
( ) planeAddRoutePoint
void planeAddRoutePoint(string planeName, float x, float y, float z);
( ) planeClearRoutePoints
void planeClearRoutePoints(string planeName);
void planeBeginNavigate(string planeName, bool bEntryOnFirstPoint);
void planeEndNavigate(string planeName);
( ) planeGetTarget
bool planeGetTarget(string planeName, int& index, float& dis);
( ) oculusCreate
handle oculusCreate();
( ) oculusDestroy
void oculusDestroy(handle h);
( ) oculusSetField
void oculusSetField(handle h, string filedPath);
( ) oculusSetPosition
void oculusSetPosition(handle h, float x, float y, float z);
( ) oculusSetTargetDistance
//void oculusSetTargetDistance(handle h, float d);
( ) oculusOpen
void oculusOpen(handle h);
( ) oculusClose
void oculusClose(handle h);
( ) startParticle
void startParticle(string name);
( ) stopParticle
void stopParticle(string name);
( ) killParticle
void killParticle(string name);
( ) showParticle
void showParticle(string name, bool b);
( ) setParticleCount
void setParticleCount(string name, int count);
( ) setParticleInterval
void setParticleInterval(string name, int interval);
( ) setParticleSize
void setParticleSize(string name, float size);
( ) setParticleColor
void setParticleColor(string name, int index, float age, float r, float g, float b);
( ) setPipelingAxis
void setPipelingAxis(string name, float array& axisArr, int pcount);
( ) setPipelingSection
void setPipelingSection(string name, float array& sectionArr, int pcount);
( ) setPipelingForce
void setPipelingForce(string name, float axisF, float radiusF, float rotateF);
( ) setPipelingColor
void setPipelingColor(string name, float axisPos, float r, float g, float b);
( ) setParticleInitialVelocity
void setParticleInitialVelocity(string name, float angle, float minVal, float maxVal);
( ) explode
void explode(float x, float y, float z, float radius);
( ) explode
void explode(string name, float x, float y, float z, float radius);
( ) burn
void burn(string name, string pathname, float size, float x, float y, float z, float vx, float vy, float vz, float depth);
( ) burnInCylinder
void burnInCylinder(string name, string pathname, float size, float x, float y, float z, float vx, float vy, float vz, float length, float depth);
( ) burnStop
void burnStop(string name);
( ) enableJet
void enableJet(string name, bool b);
( ) runJet
void runJet(string name, float time);
( ) runJet
void runJet(string name);
( ) camZoomToField
void camZoomToField(dword key);
( ) camZoomToFieldAnim
void camZoomToFieldAnim(dword key, float time);
( ) camZoomToFieldAnimByPath
void camZoomToFieldAnimByPath(string pathname, float time);
( ) camSetDisableAllowed
void camSetDisableAllowed(BOOL b);
( ) camGetCamera
void camGetCamera(string vportName, dword& key, float array& values);
( ) camGetCamera
void camGetCamera(string vportName, float array& values);
( ) camSetCamera
void camSetCamera(string vportName, dword key, float array values);
( ) camSetCamera
void camSetCamera(string vportName, dword key, float ex, float ey, float ez, float tx, float ty, float tz, float ux, float uy, float uz);
( ) camSetCameraHost
void camSetCameraHost(string hostName);
( ) camSetCameraFov
void camSetCameraFov(string vportName, float angle);
( ) camZoom
void camZoom(float factor);
( ) camLift
void camLift(float distance);
( ) camSetBasisField
void camSetBasisField(string vportName, dword key, bool bConvertCamera);
( ) camSetVertical
void camSetVertical(float x, float y, float z);
( ) camLock
void camLock(float distance, float minAngle, float maxAngle);
( ) camLock
void camLock(float minDis, float maxDis, float minAngle, float maxAngle);
( ) camUnlock
void camUnlock();
( ) camSetWalkSpeed
void camSetWalkSpeed(float speed);
( ) camGetWalkSpeed
void camGetWalkSpeed(float& speed);
( ) camSetCameraStep
void camSetCameraStep(float step);
( ) camGetCameraStep
void camGetCameraStep(float& step);
( ) camSetCameraHeight
void camSetCameraHeight(float height);
( ) camGetCameraHeight
void camGetCameraHeight(float& height);
( ) camSetCameraUpward
void camSetCameraUpward(float x, float y, float z);
( ) camGetCameraUpward
void camGetCameraUpward(float& x, float& y, float& z);
( ) camSetGroundField
void camSetGroundField(string pathname);
( ) camSetEyeDistance
void camSetEyeDistance(float dis);
( ) camSetUIDepth
void camSetUIDepth(float dis);
( ) camPlaceGuideCamera
void camPlaceGuideCamera(string camName, string vportName, dword key, float array& values, float scale);
( ) camShowGuideCamera
void camShowGuideCamera(string camName, bool b);
( ) enableCameraCollision
void enableCameraCollision(bool bCollision);
( ) camFindRouteTo
bool camFindRouteTo(float array& values);
( ) camFindRoute
bool camFindRoute(float array& values1, float array& values2);
( ) camFindRouteTo
bool camFindRouteTo(float posx, float posy, float posz, float tarx, float tary, float tarz, float upx, float puy, float upz);
( ) camZoom
void camZoom(float dis);
( ) moveingCamera
void moveingCamera(string movingDir,float dis);
( ) camMove
void camMove(string baseField, float x, float y, float z, float dis);
( ) camSetCollisionOffset
void camSetCollisionOffset(float front, float left, float up);
( ) applyCamera
void applyCamera(string ame);
( ) enableProcess
void enableProcess(string processName, bool bEnable, bool bTraning);
( ) beginProcess
void beginProcess(string processName);
( ) beginProcess
void beginProcess(string processName, float width, float height);
( ) endProcess
void endProcess(string processName);
( ) markProcess
float markProcess(string processName, int& missNum, int array& missArr, int& errNum, int array& errArr, int& correctNum, int array& correctArr);
( ) markProcess
float markProcess(string processName, int mainNum, int array& mainSteps, int array& subNum, int array& subSteps, int& missNum, int array& missArr, int& errNum, int array& errArr, int& correctNum, int array& correctArr);
( ) playProcess
void playProcess(string processName);
( ) replayProcess
void replayProcess(string processName);
( ) replayProcessCallback
void replayProcessCallback(string processName);
( ) replayProcessEnd
void replayProcessEnd(string processName);
( ) getProcessName
string getProcessName(int id);
( ) getCauseName
string getCauseName(int id);
( ) getProcessNameByCauseId
string getProcessNameByCauseId(int id);
( ) setStepAutoFlag
void setStepAutoFlag(string processName, bool bEnable);
( ) getNextStep
void getNextStep(string fualtName, int examineId, int stepId, int& nextExamineId, int& nextStepId);
( ) isValidStep
bool isValidStep(string processName, int id);
( ) isValidStepReport
bool isValidStepReport(string processName, int id);
( ) isValidStep
//bool isValidStep(string fualtName, int examineId, int stepId, int nextExamineId, int nextStepId);
( ) isValidStepEx
bool isValidStepEx(string fualtName, int mainNum, int array& mainSteps, int array& subNum, int array& subSteps, int examineId, int stepId, int nextExamineId, int nextStepId);
( ) getStepName
string getStepName(string processName, int id);
( ) getStepName
string getStepName(int id);
( ) getStepIndex
int getStepIndex(string processName, int id);
( ) getStepMark
float getStepMark(string processName, int id);
( ) recordStep
void recordStep(string processName, int id);
( ) recordStepAuto
bool recordStepAuto(string processName, int id);
( ) findHistoryStep
bool findHistoryStep(string processName, long timeBegin, long timeEnd, int& id, int& type);
( ) getHistorySteps
void getHistorySteps(string processName, int& stepCount, int array& steps);
( ) setProcessSteps
void setProcessSteps(string processName, int& missNum, int array& missArr, int& errNum, int array& errArr, int& correctNum, int array& correctArr);
( ) workshopRead
bool workshopRead(string filename);
( ) workshopRun
bool workshopRun();
( ) workshopClear
void workshopClear();
( ) workshopExecuteStep
bool workshopExecuteStep(string part, string action, long time);
( ) workshopExecuteStep
bool workshopExecuteStep(long part, long action, long time);
( ) workshopAddMapping
void workshopAddMapping(string triggerPart, string executePart);
( ) workshopFindMapping
string workshopFindMapping(string triggerPart);
( ) workshopRemoveMapping
void workshopRemoveMapping(string triggerPart);
( ) workshopRemoveTriggerOnePart
void workshopRemoveTriggerOnePart(string trigger);
( ) workshopRemoveTriggerOnePart
void workshopRemoveTriggerOnePart(string trigger, bool bFront);
( ) workshopGetTriggerPart
bool workshopGetTriggerPart(string trigger, string& part);
( ) workshopGetTriggerPartCount
int workshopGetTriggerPartCount(string trigger);
( ) workshopRemoveTriggerAllParts
void workshopRemoveTriggerAllParts(string trigger);
( ) workshopGetPartField
bool workshopGetPartField(string part, string& pathname);
( ) workshopGetPartID
bool workshopGetPartID(string pathname, string& id);
( ) workshopMoveTriggerOnePart
void workshopMoveTriggerOnePart(string triggerFrom, string triggerTo, bool bFront);
( ) workshopGetRGVCurPos
void workshopGetRGVCurPos(string part, string& pos);
( ) workshopMoveRGVTo
void workshopMoveRGVTo(string part, string line, string pos);
( ) workshopSetBufferTime
void workshopSetBufferTime(long time);
( ) workshopGetPartCount
int workshopGetPartCount();
( ) workshopGetPartStatus
bool workshopGetPartStatus(int index, string& pathname, dword& status);
( ) workshopInitializeStatus
int workshopInitializeStatus();
( ) workshopCall
dword workshopCall(string name, string value);
( ) enableSequence
void enableSequence(string name, bool b);
( ) playSequence
void playSequence(string name, bool b);
( ) netCreateServer
bool netCreateServer(string& hostAddress, int port, string user, string password);
( ) netConnect
bool netConnect(string hostAddress, int port, string user, string password);
( ) netClose
void netClose();
( ) netGetHostAddress
void netGetHostAddress(string& hostAddress);
( ) netSendMessage
bool netSendMessage(string address, int port, string message);
( ) netSendData
bool netSendData(string address, int port, byte array& data, int len);
( ) netSend
bool netSend(string address, int port, byte array& data, int len);
( ) netTransformField
void netTransformField(string address, int port, string pathname);
( ) netSetReactionDefaultSetting
void netSetReactionDefaultSetting(string setting);
( ) netSetEditText
void netSetEditText(string address, int port, string editName, int row, string content);
( ) netClearReceiveBuffer
void netClearReceiveBuffer();
( ) netSetVariableInt
void netSetVariableInt(string address, int port, string varName, int val);
( ) netSetVariableFloat
void netSetVariableFloat(string address, int port, string varName, float val);
( ) netSetVariableString
void netSetVariableString(string address, int port, string varName, string str);
( ) netSetVariableLong
void netSetVariableLong(string address, int port, string varName, long val);
( ) netCopyVariable
void netCopyVariable(string address, int port, string varName);
( ) netCopyModuleVariables
void netCopyModuleVariables(string address, int port, string moduleName, bool bApplySub);
( ) netCopyField
void netCopyField(string address, int port, string fieldPath);
( ) netStartAnimation
void netStartAnimation(string address, int port, string animName);
( ) netGetIntProperty
int netGetIntProperty(string name);
( ) netGetProperty
string netGetProperty(string name);
( ) netGetProperty
string netGetProperty(string name, int dwData);
( ) netCreateUDP
bool netCreateUDP(int port, string funcName);
( ) netOpenUDP
bool netOpenUDP(string serverAddr, int port, string funcName);
( ) netSendUDP
bool netSendUDP(int port, byte array& data, int len);
( ) netSendUDP
bool netSendUDP(int port, string message);
( ) netCloseUDP
void netCloseUDP(int port);
( ) CallbkReceiveUdp
void CallbkReceiveUdp(byte array& data, int len);
( ) ddsStart
bool ddsStart(string funcName, string iniXml);
( ) ddsStop
void ddsStop();
( ) ddsWrite
bool ddsWrite(string name, string value);
( ) ddeCreate
bool ddeCreate(bool isServer, string serviceName, string funcName);
( ) ddeClose
void ddeClose(string serviceName);
( ) ddeSetData
dword ddeSetData(string serviceName, string item, string val);
( ) ddeUpdateData
bool ddeUpdateData(string serviceName, string topic, string item);
( ) ddeConnect
bool ddeConnect(string serviceName, string topic);
( ) ddeRequestOnce
bool ddeRequestOnce(string serviceName, string item);
( ) ddeStartRequestLoop
bool ddeStartRequestLoop(string serviceName, string item);
( ) ddeStopRequestLoop
bool ddeStopRequestLoop(string serviceName, string item);
( ) ddeSendCommand
bool ddeSendCommand(string serviceName, string command);
( ) showTable
void showTable(string name, bool b);
( ) setTablePos
void setTablePos(string name, float x, float y, float z);
( ) setTableTitle
void setTableTitle(string name, string title);
( ) setTableItem
void setTableItem(string name, int index, string item);
( ) setTableValue
void setTableValue(string name, int index, string value);
( ) setTableLineCount
void setTableLineCount(string name, int count);
( ) startVolumeSequence
void startVolumeSequence(string name);
( ) stopVolumeSequence
void stopVolumeSequence(string name);
( ) resetVolumeSequence
void resetVolumeSequence(string name);
( ) setSubVolume
void setSubVolume(string name, string subName);
( ) setVolumeSourceFile
bool setVolumeSourceFile(string name, string filename);
( ) setFieldVolume
bool setFieldVolume(string fieldPath, string volumeName);
( ) setVolumePoints
bool setVolumePoints(string name, float array& points, int count);
( ) setVolumeValues
bool setVolumeValues(string name, float array& values, int dimension, int count);
( ) getVolumeValue
bool getVolumeValue(string name, float x, float y, float z, double array& value, int dimension);
( ) getVolumeValueByIndex
bool getVolumeValueByIndex(string name, int index, float x, float y, float z, double array& value, int dimension);
( ) getVolumeValue
bool getVolumeValue(string name, float x, float y, float z, double& value);
( ) getVolumeValueByIndex
bool getVolumeValueByIndex(string name, int index, float x, float y, float z, double& value);
( ) setVolumeColorSetting
void setVolumeColorSetting(string name, int index, float value, float r, float g, float b, float a);
( ) clearVolumeColorSettings
void clearVolumeColorSettings(string name);
( ) createVolumeSequenceAnimation
bool createVolumeSequenceAnimation(string name, string filename);
( ) setChartPos
void setChartPos(string name, float x, float y, float z);
( ) setChartSize
void setChartSize(string name, float w, float h);
( ) setChartVariable
void setChartVariable(string name, string varName);
( ) setChartColor
void setChartColor(string name, int index, float r, float g, float b);
( ) setPercentCount
void setPercentCount(string name, int c);
( ) setPercentColor
void setPercentColor(string name, int i, float r, float g, float b);
( ) setPercentValue
void setPercentValue(string name, int i, float value);
( ) setPercentDescr
void setPercentDescr(string name, int i, string descr);
( ) setPercentValueRange
void setPercentValueRange(string name, float min, float max);
( ) instanceAllChartVariables
void instanceAllChartVariables(string moduleName);
( ) setGridCellString
void setGridCellString(string name, int i, int j, string val);
( ) setGridCellColor
void setGridCellColor(string name, int i, int j, float r, float g, float b);
( ) setGridColWidth
void setGridColWidth(string name, int j, float colWidth);
( ) setHistogramRange
void setHistogramRange(string name, float min, float max);
( ) setCurveRange
void setCurveRange(string name, float minX, float maxX, float minY, float maxY);
( ) setCurveBackgroundStyle
void setCurveBackgroundStyle(string name, int style);
( ) dbConnect
handle dbConnect(string cnnString);
( ) dbClose
void dbClose(handle hCnn);
( ) dbOpenRecordSet
handle dbOpenRecordSet(handle cnn, string tableName);
( ) dbCloseRecordSet
void dbCloseRecordSet(handle record);
( ) dbFindFirst
bool dbFindFirst(handle record, string strFilter);
( ) dbFindNext
bool dbFindNext(handle record, string strFilter);
( ) dbMoveFirst
bool dbMoveFirst(handle record);
( ) dbMoveLast
bool dbMoveLast(handle record);
( ) dbMoveNext
bool dbMoveNext(handle record);
( ) dbExecuteSQL
void dbExecuteSQL(handle record, string strSQL);
( ) dbExecuteSQLEx
handle dbExecuteSQLEx(handle hCnn, string strSQL);
( ) dbExecuteSQLSyn
void dbExecuteSQLSyn(handle hCnn, string strSQL, string callback);
( ) dbIsBOF
bool dbIsBOF(handle record);
( ) dbIsEOF
bool dbIsEOF(handle record);
( ) dbAddNew
bool dbAddNew(handle record);
( ) dbDelete
bool dbDelete(handle record);
( ) dbUpdate
bool dbUpdate(handle record);
( ) dbGetRecordCount
long dbGetRecordCount(handle record);
( ) dbGetString
bool dbGetString(handle record, string fieldName, string& str);
( ) dbGetLong
bool dbGetLong(handle record, string fieldName, long& lVal);
( ) dbGetBits
bool dbGetBits(handle record, string fieldName, dword& buffer, long& count);
( ) dbGetFloat
bool dbGetFloat(handle record, string fieldName, float& lVal);
( ) dbGetTime
bool dbGetTime(handle record, string fieldName, int& year, int& month, int& day, int& hour, int& minute, int& second);
( ) dbGetTime
bool dbGetTime(handle record, string fieldName, int& year, int& month, int& day, int& hour, int& minute, int& second, int& minisec);
( ) dbSetString
bool dbSetString(handle record, string fieldName, string str);
( ) dbSetLong
bool dbSetLong(handle record, string fieldName, long lVal);
( ) dbSetBits
bool dbSetBits(handle record, string fieldName, dword buffer, long count);
( ) dbSetFloat
bool dbSetFloat(handle record, string fieldName, float fVal);
( ) dbSetTime
bool dbSetTime(handle record, string fieldName, int year, int month, int day, int hour, int minute, int second);
( ) mysqlConnect
handle mysqlConnect(string szHost, int uPort, string szDbName, string szUser, string szPawd);
( ) mysqlExecuteSQL
bool mysqlExecuteSQL(handle database, string strSQL, string callback);
( ) mysqlClose
void mysqlClose(handle database);
( ) startDataSource
bool startDataSource(string name);
( ) stopDataSource
bool stopDataSource(string name);
( ) appendDataTimeBuffer
void appendDataTimeBuffer(string name, float time, float array data, int len);
( ) interpolateDataTimeBuffer
bool interpolateDataTimeBuffer(string name, float time, float array& data, int len);
( ) setDataTimeBufferLength
void setDataTimeBufferLength(string name, float timeLen);
( ) setDataTimeBufferCycle
void setDataTimeBufferCycle(string name, float cycle);
( ) generatorCreate
void generatorCreate(string name, string variableName, string filename);
( ) generatorPlay
void generatorPlay(string name);
( ) generatorStop
void generatorStop(string name);
( ) generatorJumpTo
void generatorJumpTo(string name, float time);
( ) setEditText
void setEditText(string name, int lineIndex, string text);
( ) setEditMultiText
void setEditMultiText(string name, string text);
( ) insertEditText
void insertEditText(string name, string text);
( ) insertEdit
void insertEdit(dword key, string name, string nameRef);
( ) insertEdit
void insertEdit(string field, string name, string nameRef);
( ) operateEdit
void operateEdit(string name, string operatorStr);
( ) getEditText
void getEditText(string name, int lineIndex, string& text);
( ) getEditMultiText
void getEditMultiText(string name, string& text);
( ) getEditLineCount
int getEditLineCount(string name);
( ) scrollEditLine
void scrollEditLine(string name, int lineNum);
( ) clearEditContent
void clearEditContent(string name);
( ) setEditFocus
void setEditFocus(string name, bool bFocus);
( ) setEditBkClr
void setEditBkClr(string name, float r, float g, float b);
( ) drawLineOnEdit
void drawLineOnEdit(string name, int x1, int y1, int x2, int y2, float r, float g, float b, int width);
( ) drawLinesOnEdit
void drawLinesOnEdit(string name, int array& points, int count, float r, float g, float b, int width);
( ) csSolvePart
bool csSolvePart(string asmName, string partName);
( ) csRotatePart
bool csRotatePart(string asmName, string partName, float x, float y, float z, float axisx, float axisy, float axisz, float angle);
( ) csMovePart
bool csMovePart(string asmName, string partName, float axisx, float axisy, float axisz, float dis);
( ) csDragPart
bool csDragPart(string asmName, string partName, int freedomIndex, float dis);
( ) csMakePoleParallel
bool csMakePoleParallel(string pole1, string pole2);
( ) csMakePoleAlign
bool csMakePoleAlign(string pole1, string pole2);
( ) csMakePoleCoAxis
bool csMakePoleCoAxis(string pole1, string pole2);
( ) csMakePoleCoAxis
bool csMakePoleCoAxis(string pole1, string pole2, bool samedir);
( ) csClearTempConstrainModel
void csClearTempConstrainModel();
( ) hookKeyboard
void hookKeyboard();
( ) hookGetKeyboard
void hookGetKeyboard(string& keys);
( ) calcScore
float calcScore(int stdNum, int array& stdArr, int array& stdScores, int freeNum, int array& freeArr, int opNum, int array& opArr, int& missNum, int array& missArr, int& errNum, int array& errArr, int& correctNum, int array& correctArr);
( ) executeScript
bool executeScript( string strScript );
( ) executeScriptFile
bool executeScriptFile( string filename );
( ) loadScript
bool loadScript(string filename);
( ) setVariableInterface
bool setVariableInterface( string filename,string type );
( ) initRegTime
void initRegTime(string strReg);
( ) GetRegTime
int GetRegTime(string strReg);
( ) GetLastTime
int GetLastTime(string strReg);
( ) GetNonceTime
int GetNonceTime();
( ) shellExecute
void shellExecute(string strExePath);
( ) shellExecuteA
void shellExecuteA(string strExePath);
( ) closeProgram
void closeProgram(string strExePath);
( ) minProgram
void minProgram(string strExePath);
( ) maxProgram
void maxProgram(string strExePath);
( ) settingsWorkdir
void settingsWorkdir(string strExePath);
( ) settingslicense
void settingslicense(string strExePath);
( ) setDialAngle
void setDialAngle(string strExePath,float fDial);
( ) getAnimState
bool getAnimState( string animName ,string strType);
( ) setButtonState
bool setButtonState( string butName,string strType );
( ) createDimension
dword createDimension(float x1, float y1, float z1, float x2, float y2, float z2, string text);
( ) SetWideView
void SetWideView(bool bFocus);
( ) SetMaterialHdrBlend
void SetMaterialHdrBlend(string strExePath,float reflectRatio);
( ) SetSceneSizeXYZR
void SetSceneSizeXYZR(float x,float y,float z,float r);
( ) SetSceneSizeR
void SetSceneSizeR(float r);
( ) getTwoOjbDistance
float getTwoOjbDistance( string objPath1 ,string objPath2 ,string objPostion1,string objPostion2);
( ) SetWrenchEnabld
void SetWrenchEnabld(string strWrench,BOOL bEnable);
( ) moveWorldField
void moveWorldField(string pathname, float axisx, float axisy, float axisz, float dis);
( ) setNutEnable
void setNutEnable(string strNut, BOOL bEnable);
( ) setOptionValuei
void setOptionValuei(string option_name, int value);
( ) setNearFar
void setNearFar(string vportName, float near, float faraway);
( ) getNearFar
void getNearFar(string vportName, float& near, float& faraway);
( ) setOptionValuef
void setOptionValuef(string option_name, float value);
( ) setSceneOption
void setSceneOption(string option_name, string value);
( ) setHomeColor
void setHomeColor(float x,float y,float z,float r);
( ) setJitterCount
void setJitterCount(int nCount);
( ) setTwinkle
void setTwinkle(string strPath,bool bTwinkle);
( ) OnMouseMove
virtual void OnMouseMove( long nFlags, float x, float y );
( ) OnLButtonDown
virtual void OnLButtonDown( long nFlags, float x, float y );
( ) OnLButtonUp
virtual void OnLButtonUp( long nFlags, float x, float y );
( ) CQueue
void CQueue();
( ) ~CQueue
void ~CQueue();
( ) Push
void Push( int id );
( ) Pop
void Pop( );
( ) Front
int Front( );
( ) Back
int Back( );
( ) Empty
void Empty( );
( ) Size
int Size( );
( ) CStringQueue
void CStringQueue();
( ) ~CStringQueue
void ~CStringQueue();
( ) Push
void Push( string str );
( ) Pop
void Pop( );
( ) Front
string Front( );
( ) Back
string Back( );
( ) Empty
void Empty( );
( ) Size
int Size( );
( ) CXmlParser
void CXmlParser();
( ) ~CXmlParser
void ~CXmlParser();
( ) Clear
void Clear();
( ) ReadFile
bool ReadFile( string filename );
( ) ReadXMLString
bool ReadXMLString( string filename );
( ) NewXML
bool NewXML();
( ) GetXMLString
bool GetXMLString(string& xmlstring);
( ) RootNode
bool RootNode();
( ) FirstChild
bool FirstChild();
( ) Child
int Child(string childname, int index);
( ) Parent
bool Parent();
( ) Next
bool Next();
( ) Previous
bool Previous();
( ) NodeName
string NodeName();
( ) Attribute
string Attribute( string name );
( ) InsertChild
bool InsertChild(string nodename);
( ) SetNodeName
bool SetNodeName(string nodename);
( ) SetAttribute
void SetAttribute( string name, string value );
( ) InsertText
bool InsertText(string text);
( ) NodePtr
dword NodePtr();
( ) SetCurrentNodeByPtr
bool SetCurrentNodeByPtr(dword ptr);
( ) CFlashPlayer
void CFlashPlayer();
( ) ~CFlashPlayer
void ~CFlashPlayer();
( ) Create
void Create(float x1, float y1, float x2, float y2);
( ) SetMovie
void SetMovie(string address);
( ) Play
void Play();
( ) Pause
void Pause();
( ) Stop
void Stop();
( ) Rewind
void Rewind();
( ) GotoFrame
void GotoFrame(long iFrame);
( ) Close
void Close();
( ) SetLoop
void SetLoop(bool b);
( ) GetLoop
bool GetLoop();
( ) SetPlaying
void SetPlaying(bool b);
( ) GetPlaying
bool GetPlaying();
( ) CallFunction
string CallFunction(string name);
( ) SetVariable
void SetVariable(string name, string val);
( ) GetVariable
string GetVariable(string name);
( ) CListCtrl
void CListCtrl();
( ) ~CListCtrl
void ~CListCtrl();
( ) Create
void Create(dword dwStyle, float x1, float y1, float x2, float y2);
( ) InsertColumn
void InsertColumn(int nCol, string title, int width);
( ) InsertItem
void InsertItem(int nItem, string itemStr);
( ) SetItemText
void SetItemText(int nItem, int nSubItem, string itemStr);
( ) GetItemText
void GetItemText(int nItem, int nSubItem, string& itemStr);
( ) Show
void Show(bool bShow);
( ) Clear
void Clear();
( ) CCurve
void CCurve();
( ) ~CCurve
void ~CCurve();
( ) SetNormal
void SetNormal(float x, float y, float z);
( ) AddLine
void AddLine(float array& start, float array& end);
( ) AddArc
void AddArc(float array& center, float array& start, float array& end, bool bCw);
( ) Clear
void Clear();
( ) Interplote
void Interplote(float u, float array& point);
( ) GetLength
float GetLength();
( ) CAnimation
void CAnimation();
( ) ~CAnimation
void ~CAnimation();
( ) SetName
void SetName(string name);
( ) Schedule
void Schedule(long time);
( ) CreateWait
void CreateWait(long startTime, long endTime);
( ) CreateTrack
void CreateTrack(dword key, long startTime, long endTime, handle hOpMotion);
( ) CreateTrack
void CreateTrack(dword key, long startTime, long endTime, dword array& keys, int keyNum, float array& normal, float array& points, int count );
( ) Reset
void Reset();
( ) Stop
void Stop();
( ) Clear
void Clear();
( ) SetContinuous
void SetContinuous(bool b);
( ) CDynaTree
void CDynaTree();
( ) ~CDynaTree
void ~CDynaTree();
( ) SetGridSize
void SetGridSize(float width, float height);
( ) FindItem
int FindItem(float x, float y);
( ) HasItem
bool HasItem(int id);
( ) GetItemFather
int GetItemFather(int id);
( ) GetItemData
dword GetItemData(int id);
( ) GetItemChild
int GetItemChild(int id, int index);
( ) GetItemChildCount
int GetItemChildCount(int id);
( ) InsertItem
void InsertItem(int id, int father_id, int after_id, dword data, dword key);
( ) Update
void Update();
( ) DeleteItem
void DeleteItem(int id);
